Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7DF3A00HNA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST50 V3
Product Model: 7DF3A00HNA

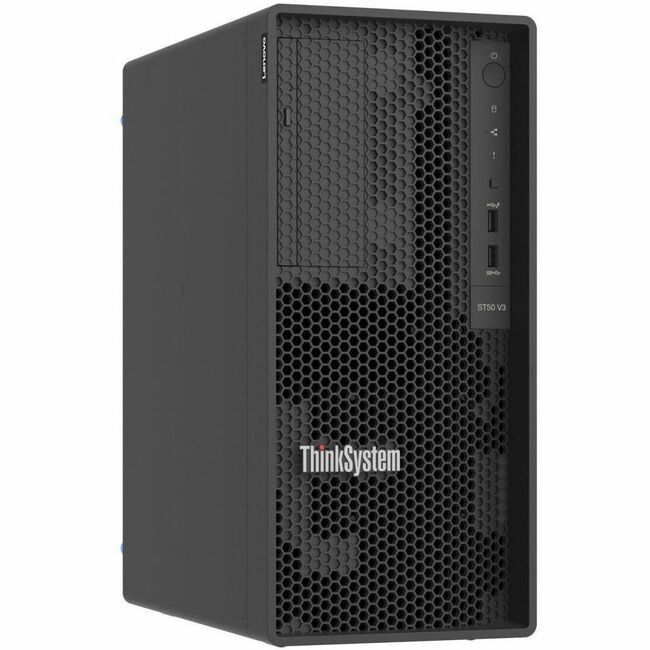

Product Name: ThinkSystem ST50 V3 7DF3A00HNA Server
Marketing Information:
The Lenovo ThinkSystem ST50 V3 is a value 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2414
Processor Core: Quad-core (4 Core)
Processor Speed: 2.60 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C266
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 128 GB
Memory Technology: TruDDR5
Memory Clock Speed: 4.40 GHz
Total Number of Memory Slots: 4
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Unregistered (Unbuffered)
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5
I/O Expansions
Number of Total Expansion Bays: 4
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 3
Number of LFF Bays: 3
Hot Swappable Bays: No
Total Number of Expansion Slots: 3
PCI Express Details: 3 PCIe slots (x4, x16, x4)
Display & Graphics
Graphics Controller Model: G200
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: XCC2 Controller Standard
Operating System
Operating System Supported: Windows Server 2022Red Hat Enterprise Linux 9.4SUSE Linux Enterprise Server 15 SP5SuSE Linux Enterprise Server 15Ubuntu 24.04 LTS x64Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 300 W
Hot Swappable Power Supply: No
Miscellaneous
Package Contents:
- ThinkSystem ST50 V3 7DF3A00HNA Server
- Documentation Flyer
- Power Cord
Security Features:
- Chassis Intrusion Switch
- Power-on password
- Administrator's password
- Trusted Platform Module supporting TPM 2.0
- Padlock loop and Kensington cable for physical security.
Physical Characteristics
Form Factor: Tower
Height: 14.80" (375.92 mm)
Width: 6.70" (170.18 mm)
Depth: 12.40" (314.96 mm)
Weight (Approximate): 26.37 lb (11960 g)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
