General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: APDU10452SW
Brand Name: APC by Schneider Electric
Product Line: NetShelter

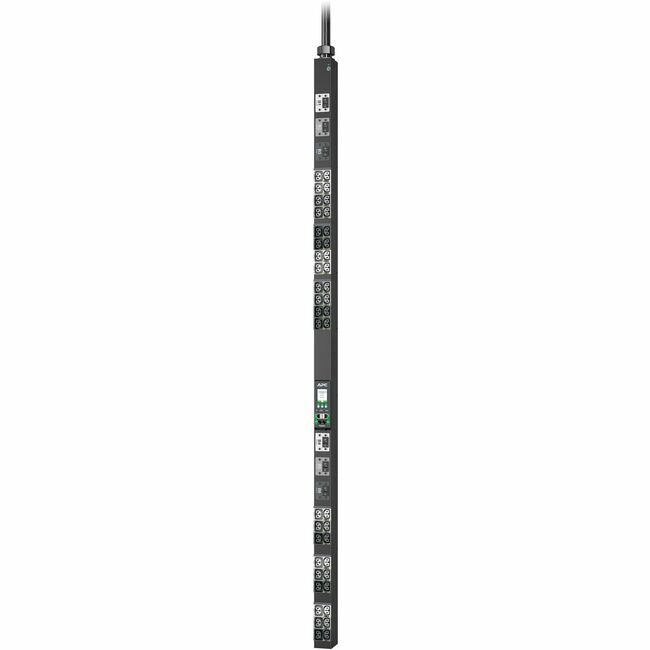

Product Name: NetShelter 42-Outlets PDU
Marketing Information: APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
Product Type: PDU

Technical Information

---

PDU Type: Switched
Phase: Three Phase
Plug/Connector Type: IEC 60309 60A 3P+PE
Receptacle Type:

IEC 60320 C13/C15/C19/C21

IEC 60320 C13/C15

Receptacle Detail:

21 x IEC 60320 C13/C15

21 x IEC 60320 C13/C15/C19/C21

Power Description

---

Input Voltage: 208 V
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 208 V AC
Power Rating (VA): 17.30 kVA
Power Rating (Watt): 17.30 kW
Input Current: 60 A

Physical Characteristics

---

Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Form Factor: Rack
Placement: Side
Rack Height: 0U
Cord Length: 5.9 ft (1.80 m)
Height: 71.89" (1826 mm)
Width: 2.20" (56 mm)
Depth: 2.95" (75 mm)
Weight (Approximate): 24.47 lb (11099.41 g)

Miscellaneous

---

Country of Origin: India
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)

Restriction of Hazardous Substances (RoHS)

China Restriction of Hazardous Substances (China RoHS)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace
