General Information

---

Manufacturer: Black Box Corporation
Manufacturer Part Number: LPS535A-SFP
Brand Name: Black Box
Product Series: LPS530
Product Model: LPS535A-SFP

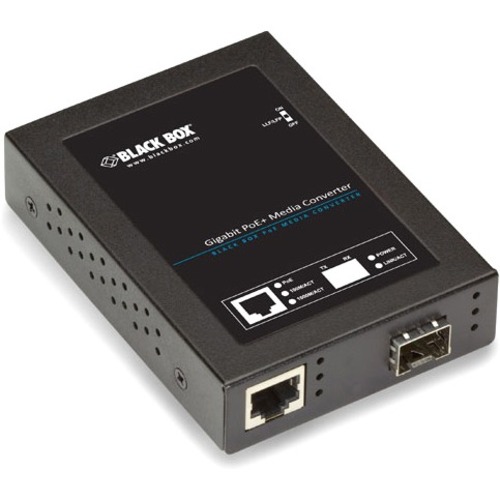

Product Name: Gb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP
Marketing Information: Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.

This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.

Packaged Quantity: 1
Product Type: Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports: 1
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of PoE+ (RJ-45) Ports: 1

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Fiber Mode Supported:

Multi-mode

Single-mode

I/O Expansions

---

Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1

Network & Communication

---

Ethernet Technology: Gigabit Ethernet
Network Technology:

10/100/1000Base-T

1000Base-SX/LX

Power Description

---

Power Source: Power Supply

Physical Characteristics

---

Form Factor: External
Height: 0.90" (22.86 mm)
Width: 2.90" (73.66 mm)
Depth: 4" (101.60 mm)
Weight (Approximate): 8.48 oz (240.40 g)

Miscellaneous

---

Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

---

Limited Warranty: 1 Year
