General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT5KRMXLW-HW
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SRT

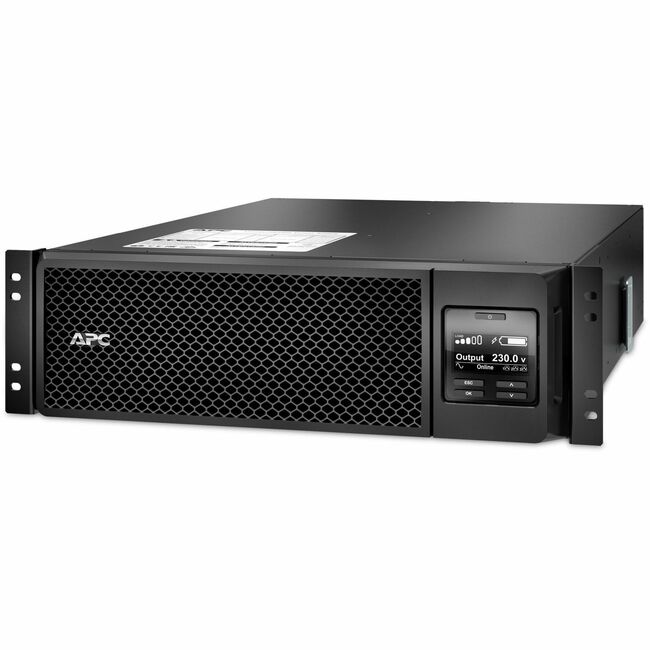

Product Name: Smart-UPS 5000VA Rack-mountable UPS
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Double Conversion Online UPS

Technical Information

---

Receptacle Detail:

1 x Hard Wire 3-wire (H N + E)

1 x Hard Wire 3-wire (2PH + G)

Number of Battery & Surge Outlets: 3
Cord Length: 3 ft (0.91 m)

Power Description

---

Load Capacity (VA): 5 kVA
Load Capacity (Watt): 4.50 kW
Input Voltage:

208 V

230 V

Output Voltage:

208 V AC

230 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 480 J

Battery Information

---

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

---

Product Color: Black
Height: 5.12" (130 mm)
Width: 17.01" (432 mm)
Depth: 28.31" (719 mm)
Rack Height: 3U
Form Factor: Rack-mountable
Weight (Approximate): 123 lb (55791.86 g)

Miscellaneous

---

Package Contents:

Smart-UPS 5000VA Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting hardware

Rack mounting support rails

Removable support feet

Temperature probe

User manual

Warranty card

Web/SNMP management card

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
