Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LDE163G-182
Brand Name: ViewSonic
Product Series: LDE
Product Model: LDE163G-182

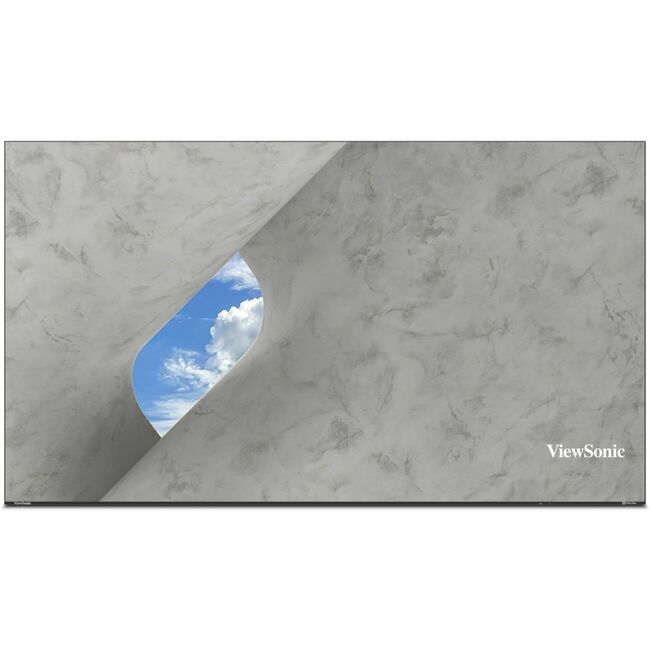

Product Name: Pre-configured 1080p All-in-One dvLED Displays
Marketing Information:
The ViewSonic® LDE163G-182 is a 163" all-in-one Direct View LED (dvLED) display. It's part of our LDE Series, designed to deliver outstanding price-performance and simplified dvLED technology. This line is perfect for schools and businesses seeking a high-impact solution that maximizes their investment. The LDE163G-182 features an innovative, fully integrated All-in-One design with a simplified OS. Everything you need is built directly into the cabinets, which allows for easier installation and operation. The complete solution ships together and can be ordered with a single SKU, making setup a breeze. This display is also built to last. It uses durable Glue-on-Board technology with an IP54 dust and moisture rating and an IK06 impact rating. You can confidently use it in busy lobbies, classrooms, or conference rooms. With 600-nit brightness and a 6,500:1 contrast ratio, it delivers a vivid, exceptional viewing experience, representing a premier value in large-format displays.
More from the Manufacturer
Product Type: Digital Signage Display
Technical Information
Ingress Protection (IP) Rating: IP54
Impact Protection (IK) Rating: IK06
Operation Hours: 24 Hours/7 Days
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 13.58 ft (4140.20 mm)
Screen Size Class: 13.58 ft (4140.20 mm)
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Backlight Technology: Direct View LED
Aspect Ratio: 16:9
Maximum LED Life: 11.4 Year
Audio
Speakers: Yes
Video
Scan Format: 2160p
Native Contrast Ratio: 6,500:1
Brightness: 600 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Mini-phone: Yes
Serial: Yes
Number of USB 3.0 Ports: 2
Number of HDMI Inputs: 2
Number of HDMI Outputs: 1
Number of Network (RJ-45) Ports: 1
Number of HDMI 2.0 Ports: 1
Power Description
Input Voltage: 120 V AC
Physical Characteristics
Mount Type: Wall Mountable
Mount Surface: Wall
Height: 80.57" (2046.48 mm)
Width: 11.85 ft (3611.88 mm)
Depth: 2.05" (52.07 mm)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Miscellaneous
Package Contents: Pre-configured 1080p All-in-One dvLED Displays Power Cord LAN Cable Remote Control Installation Guide Wall Mount LD-MK-004 LD-MK-006
Application/Usage: SchoolBusinessCommercialLobbyHigh Traffic AreaClassroomConference RoomEnergy Star: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
TAA Compliant: No
