Description:
General Information
Manufacturer: Philips Electronics
Manufacturer Part Number: 55BDL3305X27
Brand Name: Philips
Product Series: 3000
Product Model: 55BDL3305X

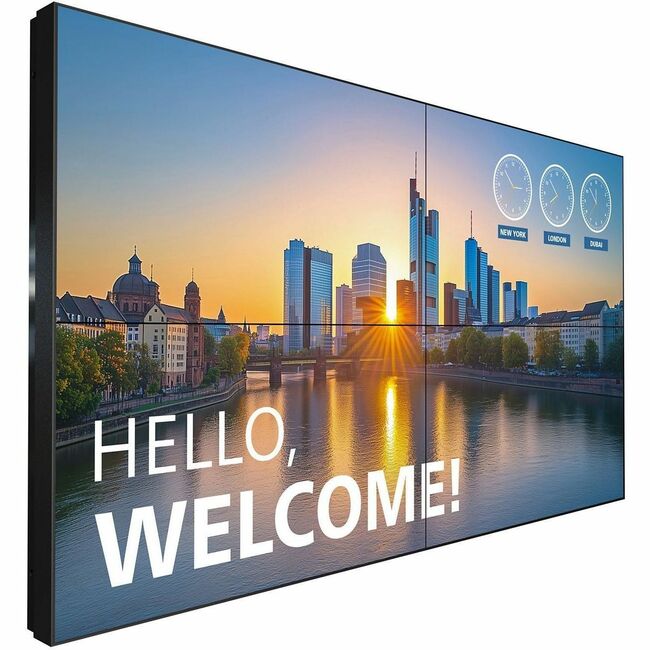

Product Name: 55BDL3305X Digital Signage Display
Marketing Information:
Remarkable retail experiences around the clock - 55"
- Direct LED Backlights
- Full HD
- 500cd/m²
Operate, monitor and maintain with CMND & Control Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
Add Android processing power with an optional CRD50 module Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
FailOver ensures content is always playing From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Full HD monitors. Brilliant images. Clear contrast Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.
OPS slot allows for PC embedding without cabling Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Tiling mode. Create tiled 4K videowalls of any size Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Operation Hours: 24 Hours/7 Days
On Screen Display (OSD) Languages: ArabicEnglishFrenchGermanItalianJapanesePolishRussianSpanishSimplified ChineseTurkishTraditional ChineseDisplay & Graphics
Number of Screens: 1
Viewable Screen Size: 54.50" (1384.30 mm)
Screen Size Class: 55" (1397 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Video
Scan Format: 1080p
Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
Number of DisplayPorts: 2
DisplayPort Output: Yes
Number of Network (RJ-45) Ports: 2
Number of Audio Line Out: 1
Number of HDMI 2.0 Ports: 2
Number of DisplayPort 1.2 Ports: 1
Number of DVI-D Ports: 1
Number of DisplayPort Outputs: 1
Physical Characteristics
VESA Mount Standard: 100 x 100100 x 200400 x 400Mount Type: Wall Mountable
Height: 26.85" (682.10 mm)
Width: 47.69" (1211.30 mm)
Depth: 3.85" (97.80 mm)
Weight (Approximate): 63.27 lb (28700 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Miscellaneous
Package Contents:
- 55BDL3305X Digital Signage Display
- 3 x Gap pad
- 1 x IR sensor cable (1.8 m)
- 1 x Quick start guide
- Remote control & AAA batteries
- RJ45 / RS232 converter
- 3 x Wire Clamper
- Power cord
- 1 x DP cable
- 1 x RJ45 cable
- 2 x Edge alignment pin
- 1 x Kit-1
- 2 x Kit-2
- DVI-D cable
- RS232 cable
Application/Usage:
Meeting RoomProfessional Audio/VideoRetailEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
