Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02816-001
Brand Name: AXIS
Product Series: M42
Product Model: M4228-LVE

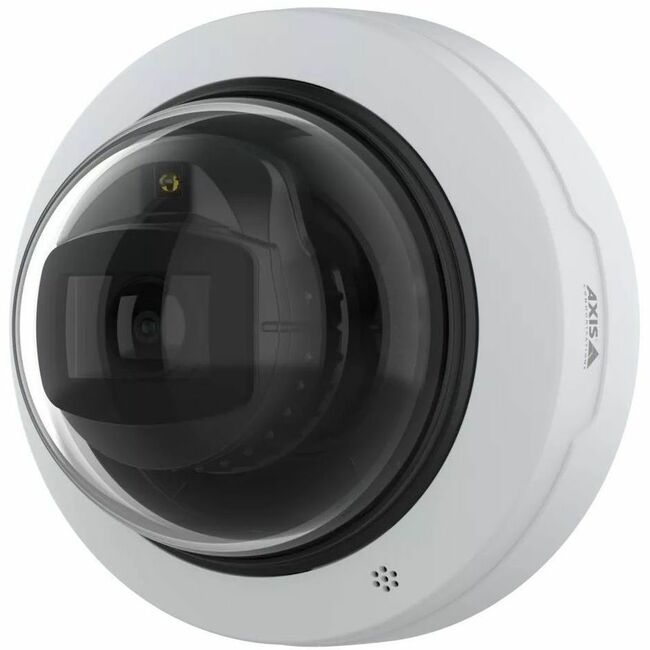

Product Name: M4228-LVE Dome Camera
Marketing Information:
Compact 8 MP AI-powered dome with audio analytics
This compact varifocal dome camera offers great image quality in 8 MP. With Lightfinder 2.0, Forensic WDR, and OptimizedIR, it provides detailed images regardless of light conditions. It comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. With AXIS Audio Analytics it can detect and classify specific sounds as well as sudden changes in sound volume. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Furthermore, this IP66- and IK10-rated camera has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).
- Great image quality in 4K
- Varifocal lens with remote zoom and focus
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- AI-based audio and video analytics
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: 4K
Night Vision: Yes
Night Vision Type: Infrared
Camera Iris: Fixed
Wide Dynamic Range (WDR): Yes
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Color Supported: Color
Field of View: Horizontal field of view: 100-38° Vertical field of view: 52°-20° Vertical field of view: 66°-26°
Effective Camera Resolution: 8 Megapixel
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC)Motion JPEGZipstreamH.265H.264H.264BH.264MH.264HMaximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.2 mm (0.13")
Maximum Focal Length: 7.2 mm (0.28")
Lens Included: Yes
Minimum Aperture: f/2.7
Maximum Aperture: f/1.6
Optical Zoom: 2.3x
Exposure
Shortest Shutter Speed: 1/33500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZPreset PointNetwork & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2TLSFTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMP (v1/v2/v3)SNMP (MIB-2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1UDP/TCP/TLSZeroConfStorage
Storage Type: Memory Card
Internal Memory: 2 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 12.90 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PlasticPolycarbonateForm Factor: Dome
Weight (Approximate): 1.19 lb (540 g)
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Condensing): 10%
Maximum Operating Humidity (Condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Back Light Compensation (BLC)Highlight Compensation (HLC)3D Digital Noise Reduction2D Digital Noise Reduction (2DNR)Wide Dynamic RangeAudio CompressionHuman DetectionFace DetectionVehicle DetectionActive Tampering AlarmIndoor/Outdoor: Outdoor
Package Contents:
- M4228-LVE Dome Camera
- Weathershield
- Installation Guide
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
