Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRIME H810M-A CSM
Brand Name: Asus
Product Line: Prime
Product Model: H810M-A-CSM

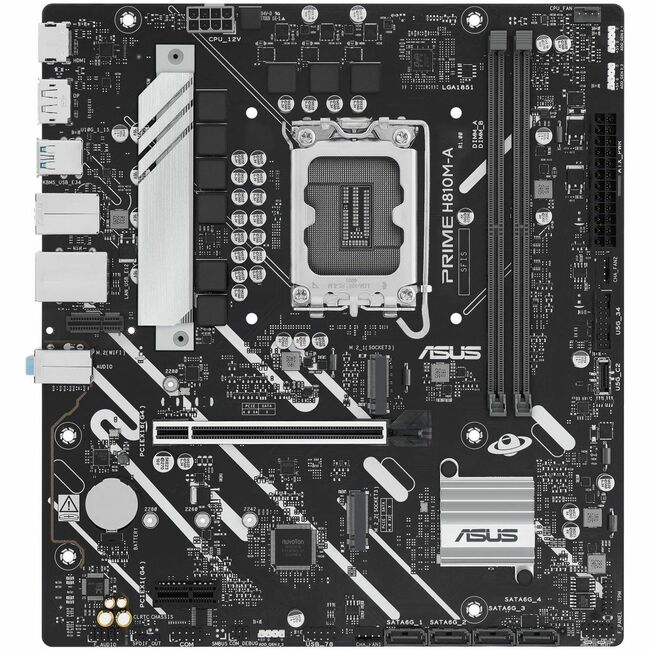

Product Name: PRIME H810M-A-CSM Desktop Motherboard
Marketing Information:
PRIME H810M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.
Product Type: Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: H810
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 2
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 128 GB
Memory Speed Supported: 6400 MHz
Memory Technology: DDR5 SDRAM
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
I/O Expansions
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0
Interfaces/Ports
Total Number of USB Ports: 6
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 8.75" (222.25 mm)
Miscellaneous
Package Contents:
- PRIME H810M-A-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O shield
- 1 x Screw package for M.2 SSD
- 1 x ACC Express activation key card
- 1 x Quick start guide
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TCO Certified: Yes
Warranty
Limited Warranty: 3 Year
