Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROG MAXIMUS Z890 EXTREME
Brand Name: Asus ROG
Product Model: MAXIMUS Z890 EXTREME

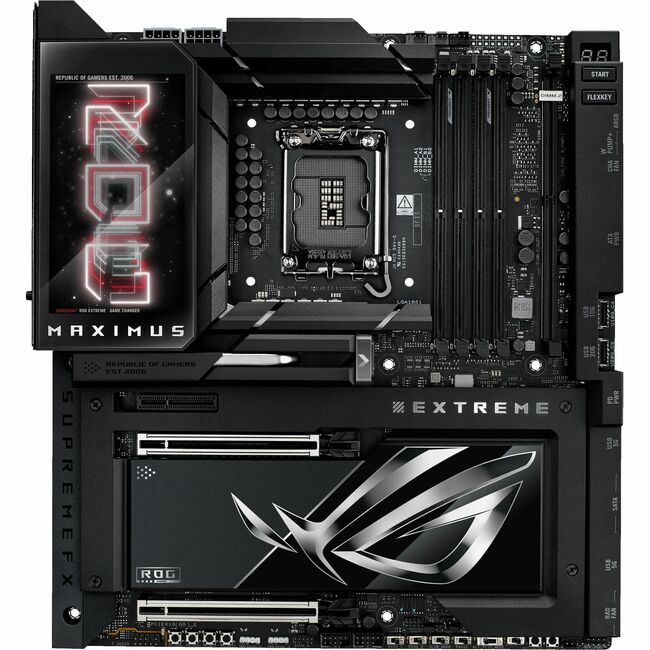

Product Name: MAXIMUS Z890 EXTREME Gaming Desktop Motherboard
Marketing Information:
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7*
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple andstraightforward way
Performance
OVERCLOCKING
NPU BOOST
The integrated NPU in Intel®Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z890
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0PCI Express 4.0Interfaces/Ports
Total Number of USB Ports: 10
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
Number of Network (RJ-45) Ports: 2
Thunderbolt: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 6
Total Number of Onboard USB Ports: 10
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12" (304.80 mm)
Depth: 10.90" (276.86 mm)
0 items
):
$1,317.95
