Description:
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: P036-006-ABL
Brand Name: Tripp Lite series
Product Model: P036-006-ABL

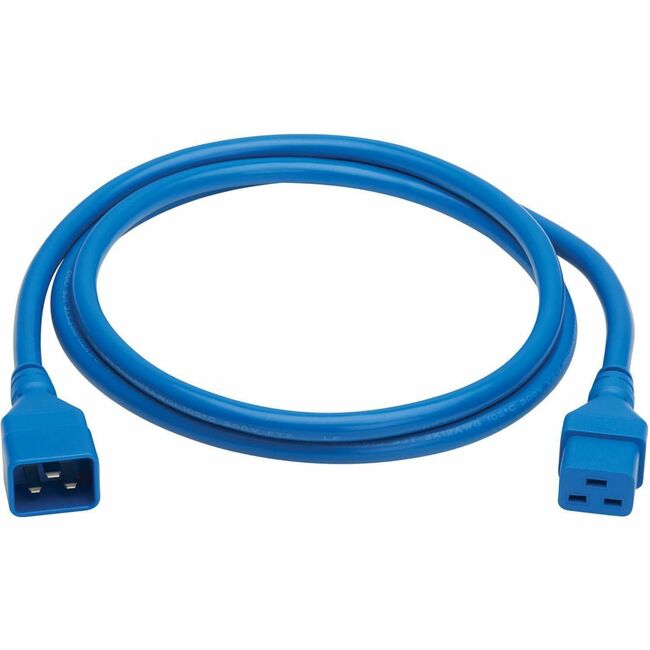

Product Name: P036-006-ABL Power Extension Cord
Marketing Information:
Features | 20A C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU or replace or upgrade the standard power cord provided by the device's manufacturer. The six-foot (1.8-meter) length allows you flexibility in placing equipment with respect to the power outlet.
Blue Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cable has a blue PVC jacket, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.
Product Type: Power Extension Cord
Technical Information
First End Connector Type: IEC 60320 C20
First End Connector Detail: 1 x 3-pin IEC 60320 C20 Male
Second End Connector Type: IEC 60320 C19
Second End Connector Detail: 1 x 3-pin IEC 60320 C19 Female
Device Supported: Server ChassisServerRouterNetwork DeviceUPSPDUNetwork SwitchLocalization: North America
Gauge: 12
Number of Conductors: 3
Features: Heavy Duty
Power Description
Voltage Rating: 250 V AC
Current Rating: 20 A
Physical Characteristics
Cord Length: 6 ft (1.83 m)
Color Family: Blue
Product Color: Blue
Jacket Material: Polyvinyl Chloride (PVC)Service Junior Thermoplastic (SJT)Environmental Conditions
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Miscellaneous
Country of Origin: Vietnam
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: Lifetime
