Product ID: 1081160191

Category:

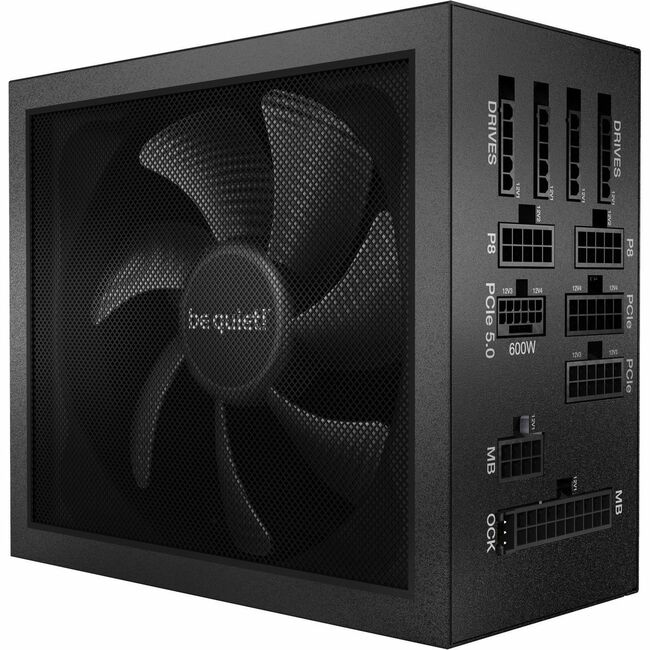

Be Quiet Dark Power 13 850W Power Supply


Be Quiet Dark Power 13 850W Power Supply

Price (CDN): $292.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $292.95

Quantity:




Description:
General Information
Manufacturer: Listan GmbH & Co.
Manufacturer Part Number: BN660
Brand Name: Be Quiet
Product Line: Dark Power 13
Product Model: Dark Power 13 850W
Product Name: Dark Power 13 850W Power Supply
Marketing Information:

Characteristics | Highlights | 80 PLUS® TITANIUM CERTIFIED | The highest efficiency certificate available

Dark Power 13 850W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.0 specifications

Dark Power 13 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

THE NEW STANDARD OF POWER | For massive transient loads

Dark Power 13 offers 850W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

FRAMELESS SILENT WINGS FAN | Patented fan technology for virtually inaudible operation

The improved tripod-mounted Be Quiet Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT | For a longer lifespan

The split fan inlet of the Dark Power 13 850W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

READY FOR OVERCLOCKING | Pushing the performance of your PSU to the max

Dark Power 13 850W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive

WORLD CLASS TOPOLOGY | State-of-the-art technology for extremely | high efficiency

With an active rectifier and full bridge LLC technology Dark Power 13 850W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105° CAPACITORS | A testament to high quality

Only the best components are used in Dark Power 13 850W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.

HIGHEST CONVENIENCE AND BEST CONNECTIVITY | Modular cables

Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.


Packaged Quantity: 4
Product Type: Power Supply
Technical Information
Specification Compliance:
  • ATX 3.0
  • EPS12V v2.92
  • Efficiency: 95.4%
    Number of Fans: 1
    Fan Bearing Type: Fluid Dynamic Bearing
    Fan Diameter: 135 mm (5.31")
    Protection Type:
  • Over Temperature
  • Over Current
  • Over Power
  • Short Circuit
  • Over Voltage
  • Under Voltage
  • Surge
  • Inrush Current
  • Modular: Yes
    Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 4
    Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 3.3 V DC @ 24 A
  • 5 V DC @ 24 A
  • 12 V DC @ 30 A
  • 12 V DC @ 35 A
  • -12 V DC @ 0.5 A
  • 5 V SB @ 3 A
  • Output Power: 850 W
    Interfaces/Ports
    Number of SATA Power Connectors: 12
    PCI Express Connector: Yes
    Number of (6+2 pin) PCI Express Power Connectors: 4
    Number of (4+4 pin) CPU Power Connectors: 1
    Physical Characteristics
    Color Family: Black
    Product Color: Black
    Form Factor: Internal
    Height: 3.39" (86 mm)
    Width: 5.91" (150 mm)
    Weight (Approximate): 4.34 lb (1970 g)
    Environmental Conditions
    Maximum Operating Temperature: 104°F (40°C)
    Miscellaneous
    Package Contents:
    • Dark Power 13 850W Power Supply
    • Thumb Screws
    • Screws
    • Cable Ties
    • Velcro Cable Ties
    • User Manual Languages DE, EN, ES, FR, PL, RU, TW, CN, JP, KC
    • OCK Slot Bracket with Switch / OCK Jumper
    • SFX-to-ATX Adapter Bracket

    Energy Star: Yes
    Energy Efficiency Certification:
  • 80 Plus Titanium
  • ENERGY STAR 8.0
  • Energy Efficiency Compliance: Energy-related Products Directive (ErP)
    Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
  • Warranty
    Limited Warranty: 10 Year
