Product ID: 1080981723

Category:

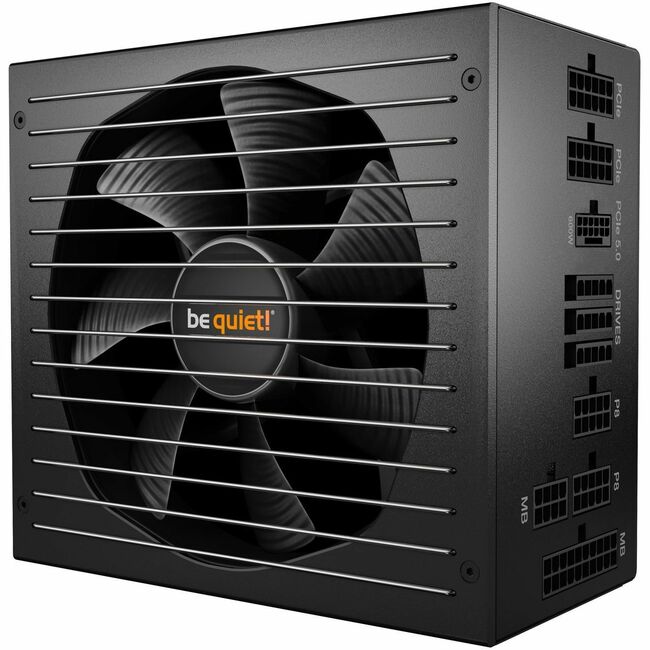

Be Quiet STRAIGHT POWER 12 850W Power Supply


Be Quiet STRAIGHT POWER 12 850W Power Supply

Price (CDN): $266.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $266.95

Quantity:




Description:
General Information
Manufacturer: Listan GmbH & Co.
Manufacturer Part Number: BN515
Brand Name: Be Quiet
Product Line: STRAIGHT POWER 12
Product Model: Straight Power 12 850W
Product Name: STRAIGHT POWER 12 850W Power Supply
Marketing Information:

80 PLUS® PLATINUM CERTIFIED | Highly efficient operation

Straight Power 12 850W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 94%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.0 specifications

Straight Power 12 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER | For massive transient loads

Straight Power 12 offers 850W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

SILENT WINGS FAN | Provides virtually inaudible operation

The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal

FLAWLESS COOLING CONCEPT | For a longer lifespan

The funnel-shaped fan inlet of the Straight Power 12 850W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES | Rock-steady signal stability and efficiency

With full bridge LLC Straight Power 12 850W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105° CAPACITORS | A testament to high quality

Only premium components are used in Straight Power 12 850W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY | Maximum utility

Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.


Package Type: Retail
Packaged Quantity: 6
Product Type: Power Supply
Technical Information
Specification Compliance:
  • ATX 3.0
  • EPS12V v2.92
  • Efficiency: 94%
    Number of Fans: 1
    Fan Bearing Type: Fluid Dynamic Bearing
    Fan Diameter: 135 mm (5.31")
    Protection Type:
  • Over Temperature
  • Over Current
  • Over Power
  • Short Circuit
  • Over Voltage
  • Under Voltage
  • Surge
  • Inrush Current
  • Modular: Yes
    Reliability
    MTBF: 100000 Hour
    Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 1
    Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 3.3 V DC @ 25 A
  • 5 V DC @ 25 A
  • 12 V DC @ 70.8 A
  • -12 V DC @ 0.5 A
  • 5 V SB @ 3 A
  • Output Power: 850 W
    Interfaces/Ports
    Number of SATA Power Connectors: 9
    PCI Express Connector: Yes
    Number of (6+2 pin) PCI Express Power Connectors: 4
    Number of (4+4 pin) CPU Power Connectors: 1
    Physical Characteristics
    Color Family: Black
    Product Color: Black
    Form Factor: Internal
    Height: 3.39" (86 mm)
    Width: 5.91" (150 mm)
    Weight (Approximate): 3.99 lb (1810 g)
    Environmental Conditions
    Maximum Operating Temperature: 104°F (40°C)
    Miscellaneous
    Package Contents:
    • STRAIGHT POWER 12 850W Power Supply
    • Thumb Screws
    • Screws
    • Cable Ties
    • Velcro Cable Ties
    • User Manual Languages
    • OCK Slot Bracket with Switch / OCK Jumper
    • SFX-to-ATX Adapter Bracket

    Energy Star: Yes
    Energy Efficiency Certification:
  • 80 Plus Platinum
  • ENERGY STAR 8.0
  • Energy Efficiency Compliance: Energy-related Products Directive (ErP)
    Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
  • Warranty
    Limited Warranty: 10 Year
