Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02732001
Brand Name: AXIS
Product Model: P3267-LVE

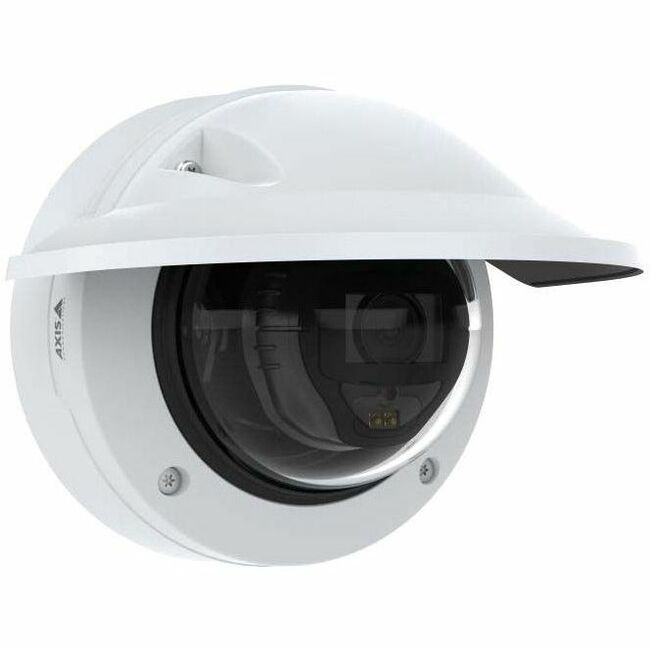

Product Name: 5 MP Outdoor Dome with IR and Deep Learning Network Camera
Marketing Information:
Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LVE delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics preinstalled, it offers highly nuanced object classification and enables fast VMS search. Featuring audio and I/O connectivity, you can integrate equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera includes built-in cybersecurity such as Axis Edge Vault to help prevent unauthorized access and safeguard your system.
- Excellent image quality in 5 MP
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- Analytics with deep learning
- Audio and I/O connectivity
- Built-in cybersecurity features
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 131.23 ft (40 m)
Night Vision Type: Infrared
Camera Iris: P-iris
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal field of view: 104°-40° Vertical field of view: 74°-29° Vertical field of view: 95°
Effective Camera Resolution: 5 Megapixel
Video
Video Formats: H.264M (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)Motion JPEGH.264B (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileH.264H.265Maximum Video Resolution: 2592 x 1944
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 3 mm (0.12")
Maximum Focal Length: 8 mm (0.31")
Lens Included: Yes
Maximum Aperture: f/1.3
Optical Zoom: 2.7x
Exposure
Shortest Shutter Speed: 1/33500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: ONVIFIPv4MQTTIPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSTLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPSIPCDPMQTT v3.1.1ZeroConfStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 12.10 W
Input Voltage: 12 V DC
Power Source Type: PoEDCPhysical Characteristics
Color Family: White
Product Color: White
Mount Type: Bracket MountJunction Box MountWall MountCeiling MountForm Factor: Dome
Height: 4.21" (107 mm)
Diameter: 5.87" (149 mm)
Weight (Approximate): 1.98 lb (900 g)
Environmental Conditions
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 122°F (50°C)
Maximum Operating Humidity: 100%
Miscellaneous
Features: Wide Dynamic RangeDay/NightVideo Management SystemMotion DetectionMulti-view StreamAudio CompressionHTTPS EncryptionPrivacy MaskingMirrorWhite BalanceIndoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
