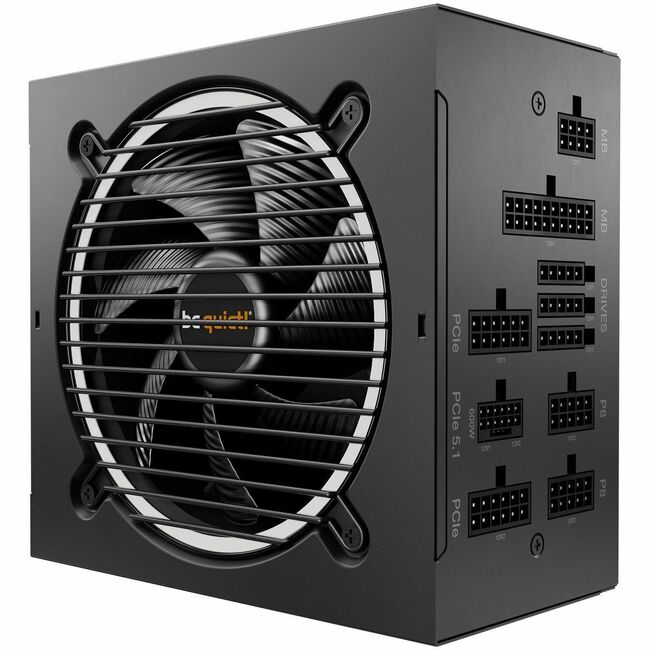

Be Quiet Pure Power 12 M 1000W Power Supply


Be Quiet Pure Power 12 M 1000W Power Supply

Price (CDN): $202.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $202.95

Quantity:




Description:
General Information
Manufacturer: Listan GmbH & Co.
Manufacturer Part Number: BN506
Brand Name: Be Quiet
Product Line: Pure Power 12 M
Product Model: Pure Power 12 M 1000W
Product Name: Pure Power 12 M 1000W Power Supply
Marketing Information:

80 PLUS® GOLD CERTIFIED | Very high operating efficiency

Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.1 specifications

Pure Power 12 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER | For massive transient loads

Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

UNPRECEDENTED SILENT OPERATION | Achieved with a silence-optimized Be Quiet fan

The exceptionally silent 120mm Be Quiet fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.

HIGH-CLASS TECHNOLOGIES | Rock-solid stability

With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

MODULAR CABLES | Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.


Product Type: Power Supply
Technical Information
Specification Compliance:
  • EPS12V v2.92
  • ATX 3.1
  • ATX 3.0
  • Efficiency: 93.1%
    Number of Fans: 1
    Fan Bearing Type: Rifle Bearing
    Fan Diameter: 120 mm (4.72")
    Protection Type:
  • Over Temperature
  • Over Current
  • Over Power
  • Over Voltage
  • Short Circuit
  • Under Voltage
  • Surge
  • Inrush Current
  • Modular: Yes
    Reliability
    MTBF: 100000 Hour
    Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 2
    Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 3.3 V DC @ 22 A
  • 5 V DC @ 22 A
  • 12 V DC @ 46 A
  • 12 V DC @ 42 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 3 A
  • Output Power: 1 kW
    Interfaces/Ports
    Number of SATA Power Connectors: 6
    PCI Express Connector: Yes
    Number of (6+2 pin) PCI Express Power Connectors: 4
    Number of (4+4 pin) CPU Power Connectors: 1
    Physical Characteristics
    Color Family: Black
    Product Color: Black
    Form Factor: Internal
    Height: 3.39" (86 mm)
    Width: 5.91" (150 mm)
    Weight (Approximate): 4.21 lb (1910 g)
    Environmental Conditions
    Maximum Operating Temperature: 104°F (40°C)
    Miscellaneous
    Package Contents:
    • Pure Power 12 M 1000W Power Supply
    • Screws
    • Cable Ties
    • User Manual

    Energy Star: Yes
    Energy Efficiency Certification:
  • ENERGY STAR 8.0
  • 80 Plus Gold
  • Energy Efficiency Compliance: Energy-related Products Directive (ErP)
    Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
  • Warranty
    Limited Warranty: 10 Year
