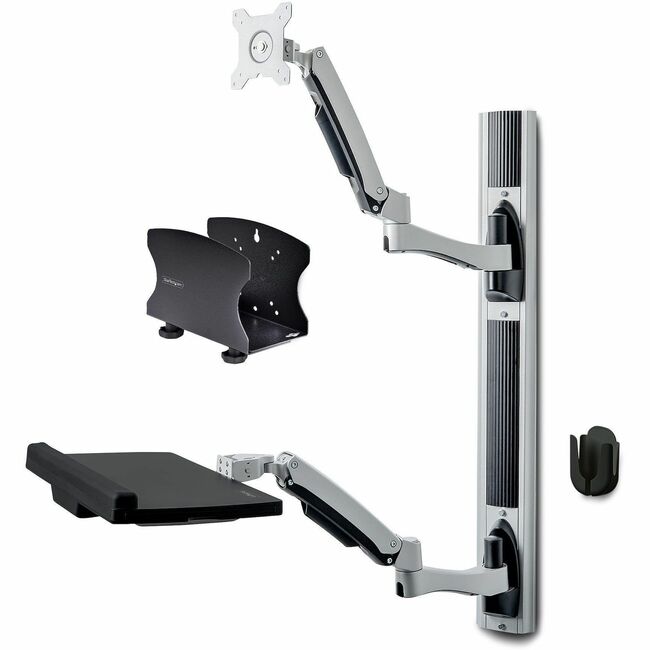

Mount this Wall Mount Workstation to create an ergonomic sit-stand desk setup for areas with limited space for a traditional desk. Use in offices, warehouses, (animal) clinics, or other limited space locations. The spring-assisted arms allow height adjustment to suit different users and maximize ergonomic positioning.

Height Adjustment with One Smooth Motion

The mechanical springs in the monitor and keyboard arms enable independent toolless height adjustment of up to 12.4in (31.5cm) with effortless one-touch motion. For additional adjustments, reposition the arms along the wall track (2.8ft / 88cm) for a different height range.

Optimal Adjustability

The VESA monitor mount supports a single standard 27" or 32" ultrawide monitor weighing up to 22lb (10kg) with 75x75 or 100x100 VESA mounting patterns. The monitor mount tilts +90°/ -20°; +/-90° swivels, and rotates up to 360° to accommodate vertical and horizontal monitor orientations.

The monitor arm extends 24.1in (61.3cm) from the wall, while the keyboard tray extends 33.5in (85.3cm) away from the wall.

Keyboard and Mouse Trays

The workstation features a large keyboard tray (17.6x8.1in / 44.9x20.7cm) and a retractable ambidextrous mouse tray (8.5x8.4in / 21.7x21.3cm) that slides in and out of the keyboard tray to suit right and left-handed users. The mouse tray and wrist rest are removable enabling for frequent cleaning of all high-touch surfaces making it ideal for a shared workstation.

Free up additional floor space when the workstation is not in use by folding the workstation flush with the wall. Use the hook-and-loop strips to secure the keyboard to its tray and store the mouse in the dedicated holder.

Desktop Computer Wall Mount

Optimize the workspace by mounting the desktop computer case to the wall under the keyboard tray with the included bracket (part 2NS-CPU-WALL-MOUNT). Enjoy unobstructed access to drive bays, peripheral ports, and wiring with the open design of the PC holder.

Included spacers ensure a snug fit with different CPU tower sizes ranging from 1.9 to 7.8in (50 to 20cm) for most Small Form Factor (SFF) computers.

For a neat and organized setup consider a wall cable management solution, part CBMWD3816 (sold separately).

• Wall Mount
• 1 x Spring Arm, Display
• 1 x Spring Arm, Keyboard Tray
• 2 x Swivel Arms
• 2 x Mounting Plates, Spring Arm
• 2 x Upper Decorative Covers
• 2 x Swivel Arm Mounts
• 2 x Lower Decorative Covers
• 2 x Spring Arm Post
• 1 x Wall Mounting Rail, Track
• 1 x Wall Mounting Rail, Track Cover
• 1 x Keyboard Tray Assembly
• 1 x Mouse Holder
• 1 x Mouse Holder Adhesive Pad
• 2 x Adhesive Hook And Loop Strips
• 1 x Mounting Bracket, CPU Holder
• 1 x Sliding Bracket, CPU Holder
• 2 x Rubber Self-Adhesive Strips, CPU Holder
• 2 x Wall Mounting Screws, CPU Holder
• 2 x Plastic Spacers, CPU Holder
• 8 x Rubber Self-Adhesive Spacers, CPU Holder
• 4 x Rubber Self-Adhesive Pads, CPU Holder
• 2 x Concrete Wall Anchors, CPU Holder
• 2 - Hand Knobs, CPU Holder
• 2 x 2.5mm Hex Key
• 2 x 5mm Hex Key
• 4 x M4 x 10mm Screws
• 4 x M4 x 6mm Screws, Hex Key
• 2 x M4x6mm Screws, Phillips
• 8 x M6 x 8mm Screws
• 4 x M6 x 18mm Screws
• 6 x M5 x 4mm Set Screws
• 12 x Concrete Anchors
• 8 x Wall Mounting Screws
• 6 x Wall Mounting Lag Screws
• 1 x 10mm Wrench
