Description:
General Information
Manufacturer: Kingston Technology Company
Manufacturer Part Number: KF560C32RS48
Brand Name: Kingston
Product Line: FURY Renegade

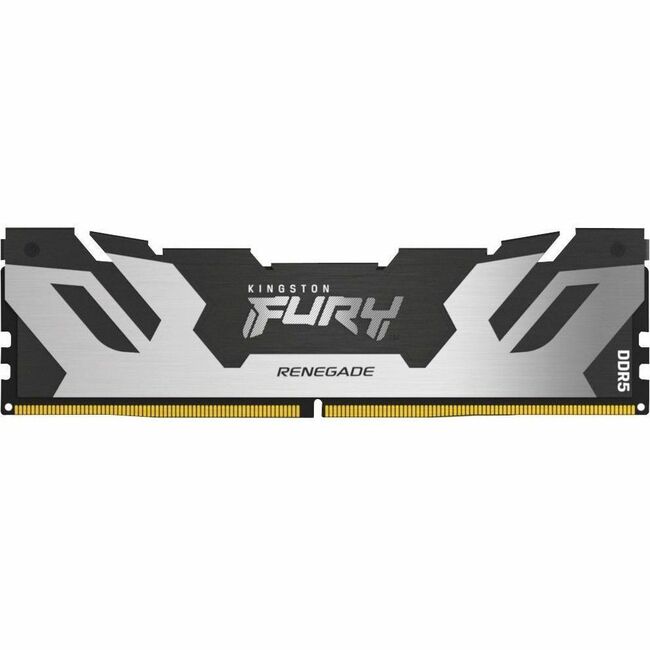

Product Name: FURY Renegade 48GB DDR5 SDRAM Memory Module
Marketing Information:
Kingston FURY KF560C32RS-48 is a 6G x 64-bit (48GB) DDR5-6000 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 3G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 32-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Product Type: RAM Module
Technical Information
Memory Size: 48 GB
Memory Technology: DDR5 SDRAM
Memory Voltage: 1.35 V
Number of Modules: 1 x 48GB
Memory Speed: 6000 MHz
Memory Standard: DDR5-6000/PC5-48000
Memory Rank: Dual-rank
Error Checking: On-die ECC
Signal Processing: Unbuffered
CAS Latency: CL32
Device Supported: MotherboardDesktop PCComputerPhysical Characteristics
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 0.30" (7.65 mm)
Width: 1.54" (39.20 mm)
Length: 5.25" (133.35 mm)
