Description:
General Information
Manufacturer: Black Box Corporation
Manufacturer Part Number: VCBDP20006MMR2
Brand Name: Black Box

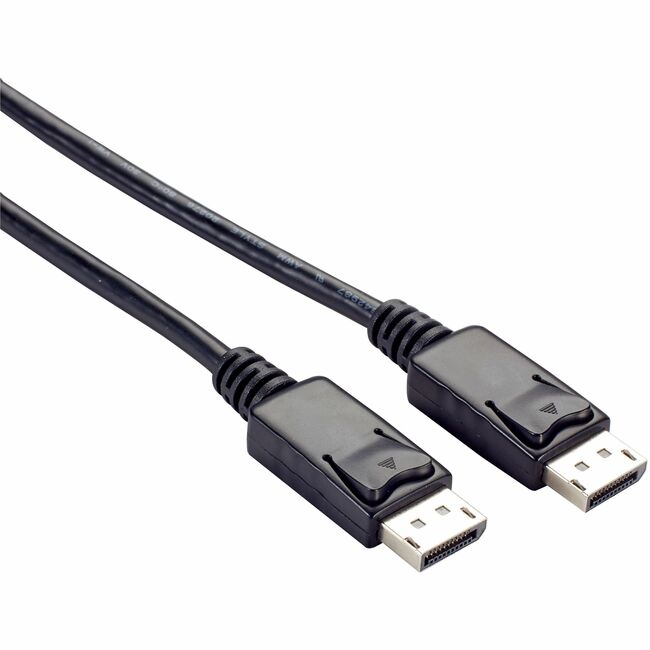

Product Name: DisplayPort 1.2 Video Cable
Marketing Information:
Reliable Connection
This DisplayPort 1.2 cable provides a dependable connection between your desktop or laptop computer and a monitor or projector. It can also be used with PCs, KVM switches, in digital signage applications and more. Additionally, this DisplayPort cable boasts gold-plated, latching connectors that provide outstanding conductivity and prevent unintended disconnections.
Ultra-High-Quality Video
This DisplayPort 1.2 cable supports High Bit Rate 2 (HBR2) bandwidths up to 21.6 Gbps, allowing for 48-bit Deep Color (16 bits per channel) and Ultra-High-Definition video resolutions of up to 4K x 2K (3840 x 2160) at 60Hz. In addition, it supports Multi-Stream Transport (MST) mode for extending video across multiple monitors.
Durable Cable Design
This cable features a black PVC jacket with a VW-1 flame rating. It is triple shielded, with each coax line individually insulated, plus 100% aluminum Mylar wrap and 50% braid coverage.
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 6 ft
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Jacket Type: VW-1
Device Supported: ComputerDesktop ComputerNotebookMonitorKVM SwitchProjectorPCAmerican Wire Gauge: 30 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2160
Features: Flame ResistantLocking LatchPhysical Characteristics
Jacket Color: Black
Shielding Material: Aluminum Mylar Foil
Jacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
Environmentally Friendly: Yes
Warranty
Limited Warranty: Lifetime
