General Information

---

Manufacturer: TRENDnet
Manufacturer Part Number: TEGS5061
Brand Name: TRENDnet
Product Model: TEG-S5061

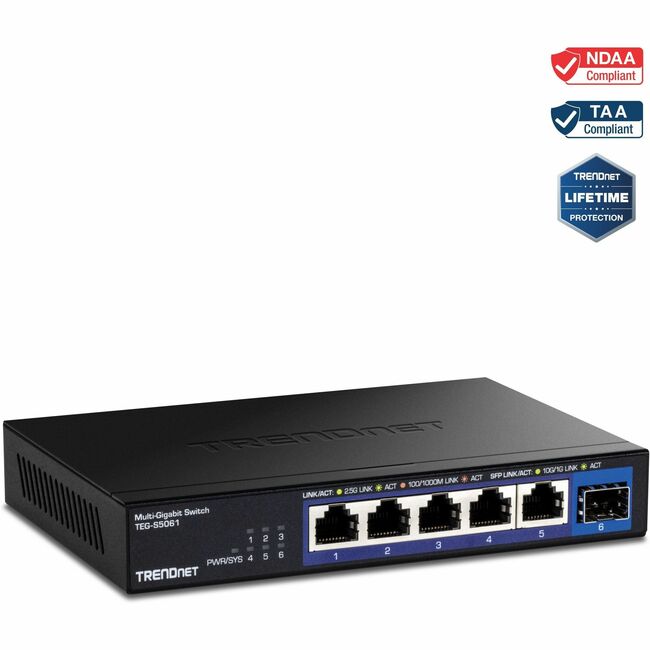

Product Name: 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port
Marketing Information: Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable switches are cost-effective solutions to increase your network's throughput.

• DEVICE INTERFACE: 5 x 2.5GBASE-T ports (100Mbps/1Gbps/ 2.5Gbps); 1 x 10G SFP+ slot (1Gbps / 10Gbps); LED indicators
• LIFETIME PROTECTION -We stand by the quality of our products.The TEG-S5061 6-Port Unmanaged 2.5G Switch is backed with Lifetime Manufacturer Protection (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 2.5G PORTS: The 6 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• 10 GIGABIT SFP+ SLOT: A dedicated 10G SFP+ slot for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network
• SWITCHING CAPACITY: The unmanaged switch is equipped with a 45Gbps Switching Capacity; COMPATABILITY: The 6 Port Ethernet switch is backwards compatible with 10/100/1000Mbps devices.

• WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
• FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
• IEEE STANDARD: IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) Compliant

More from the Manufacturer

Product Type: Ethernet Switch

Technical Information

---

Features: Fanless

Interfaces/Ports

---

Total Number of Network Ports: 5
Network (RJ-45): Yes
Modular: Yes
Port/Expansion Slot Details:

5 x 2.5 Gigabit Ethernet Network

1 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Ethernet Technology:

2.5 Gigabit Ethernet

10 Gigabit Ethernet

Network Technology:

2.5GBase-T

10GBase-X

I/O Expansions

---

Total Number of Expansion Slots: 1
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1

Network & Communication

---

Layer Supported: 2
Networking Standards:

IEEE 802.3bz

IEEE 802.3ae

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3az

Management & Protocols

---

Manageable: No

Power Description

---

Input Voltage:

120 V AC

230 V AC

Power Source: Power Adapter
Power Consumption: 9.50 W

Physical Characteristics

---

Product Material: Metal
Form Factor: Wall Mountable
Height: 1.02" (26 mm)
Width: 4.33" (110 mm)
Length: 6.30" (160 mm)
Weight (Approximate): 14.60 oz (414 g)

Miscellaneous

---

Package Contents:

• 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port
• Quick Installation Guide
• Power Adapter (12V DC, 1A)

Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

---

Limited Warranty: Lifetime
