Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP4434A
Brand Name: APC by Schneider Electric
Product Line: NetShelter

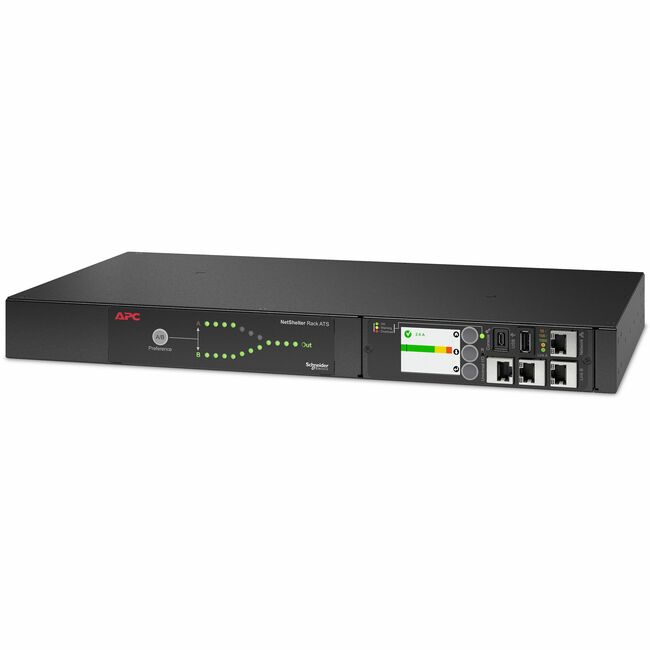

Product Name: NetShelter Automatic Transfer Switch
Marketing Information: APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Product Type: Automatic Transfer Switch
Technical Information
Plug/Connector Type: IEC 60320 C20 16A (2P+E)
Receptacles: 8 x IEC 60320 C131 x IEC 60320 C19Power Description
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Current: 20 A
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.29" (236 mm)
Weight (Approximate): 8.25 lb (3742.14 g)
Miscellaneous
Package Contents:
- NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
