Description:
General Information
Manufacturer: Hikvision
Manufacturer Part Number: DS2CD2743G2IZS2812MM
Brand Name: Hikvision
Product Line: EasyIP
Product Series: Pro
Product Model: DS-2CD2743G2-IZS

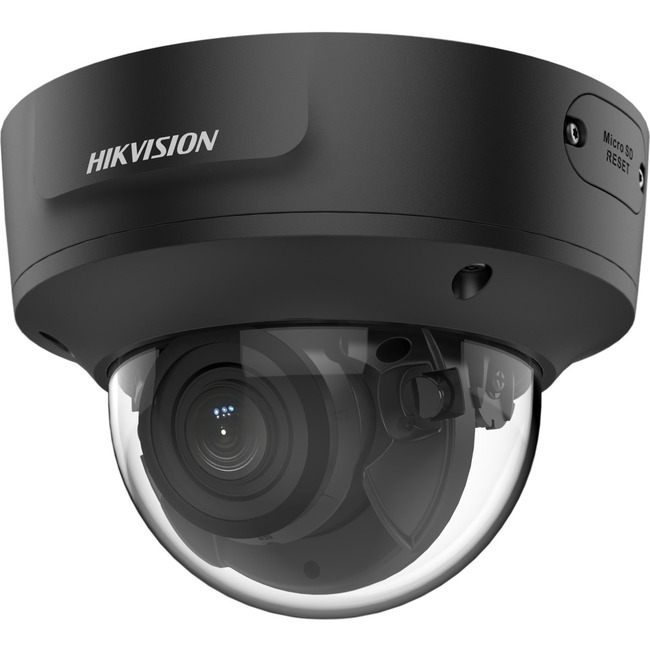

Product Name: 4 MP AcuSense Motorized Varifocal Dome Network Camera
Marketing Information: Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front-and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: HD
Night Vision: Yes
Night Vision Distance: 131.23 ft (40 m)
Display & Graphics
Image Sensor Type: CMOS
Color Supported: Color
Field of View: horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats: H.265+H.265H.264+H.264MJPEGMaximum Video Resolution: 2688 x 1520
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 2.8 mm
Maximum Focal Length: 12 mm
Lens Included: Yes
Lens Mount Type: Φ14
Maximum Aperture: f/1.6
Optical Zoom: 4x
Exposure
Shortest Shutter Speed: 1/100000 Second
Longest Shutter Speed: 1/3 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Physical Characteristics
Mount Type: Junction Box MountWall MountPole MountCorner MountPendant MountForm Factor: Dome
Durability: Water ResistantDust ResistantVandal ResistantDiameter: 6.04" (153.30 mm)
Weight (Approximate): 880 g
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 95%
Miscellaneous
Features: Back Light Compensation (BLC)3D Digital Noise ReductionDay/NightFace DetectionMotion DetectionHuman DetectionPassword ProtectionPrivacy MaskingHTTPS EncryptionIngress ProtectionRegion of InterestSD Card Local StorageBuilt-in Card ReaderAudio DetectionAudio CompressionHighlight Compensation (HLC)Impact Protection Rating: IK10
Ingress Protection Rating: IP67
