Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7Y701008NA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: DE
Product Model: DE2000H

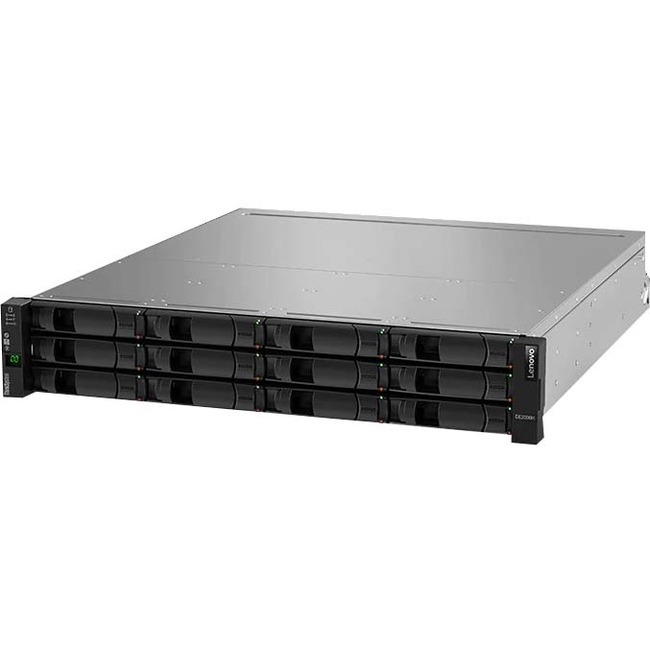

Product Name: ThinkSystem DE2000H DAS/SAN Storage System
Marketing Information:
Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE2000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE2000H Hybrid Storage Array and consider its use in their solutions.
Product Type: DAS/SAN Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
SSD Cache Capacity: 16 GB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Controllers
Number of Controllers: 2
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 6, 10
Interfaces/Ports
Host Interface: 12Gb/s SAS
Number of SAS Ports (External): 4
Total Number of USB Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Fibre Channel: Yes
Management & Protocols
Protocols: FCPSSHSMI-SSNMPSSLLDAPPower Description
Number of Power Supplies Installed: 2
Plug/Connector Type: C14
Maximum Power Supply Wattage: 913 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 3.35" (85 mm)
Width: 17.60" (447 mm)
Depth: 19.02" (483 mm)
Form Factor: Rack-mountable
Rack Height: 2U
Miscellaneous
Package Contents:
- ThinkSystem DE2000H DAS/SAN Storage System
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- Quick Installation Guide
- Electronic Publications Flyer
- 2 x Power Cables
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered.
