Description:
General Information
Manufacturer: Targus Group International
Manufacturer Part Number: HD583
Brand Name: HyperDrive
Product Model: HD583

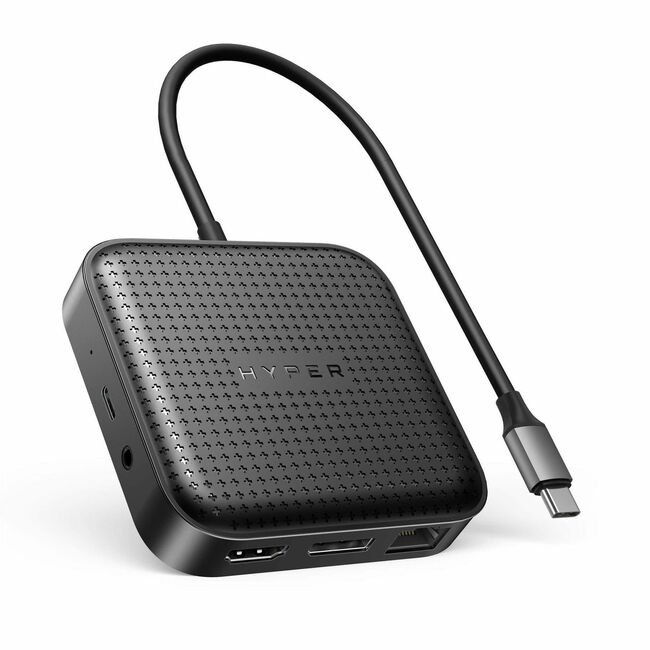

Product Name: USB4 Mobile Dock
Marketing Information:
The HyperDrive USB4 Mobile Dock is a slim, portable USB4 docking station that features integrated HDMI 2.1 and DisplayPort 1.4 for single 8K 30Hz display support on SST and MST devices, and is capable of dual 4K 60Hz display support on MST enabled devices.
It also provides the ability to quickly charge a host device with USB-C 85W power delivery while giving 2x USB-A 10Gbps ports for blazing fast file transfers and supplementary peripheral support. Compatible with USB4 devices, macOS, Thunderbolt 4 and 3 Windows PCs, and Thunderbolt docking stations.
Dual Extended Display Support
Easily connect up to 2 external displays at 4K 60Hz with the flexibility of HDMI 2.1 or DP 1.4.
USB-C 85W PD Passthrough
Quickly charge your host computer with 85 watts of power when connected to an external 100 watt Power Delivery charger.
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 3840 x 21607680 x 4320Screen Mode Supported: 4K8KDevice Supported: NotebookDesktop PCNetwork & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
USB Type-C: Yes
USB Type-C Detail: 85W PD Passthrough
Number of USB Type-A Ports: 2
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
HDMI: Yes
HDMI Version: 2.1
Thunderbolt: Yes
Software
Operating System Supported: macOSWindowsChromeOSLinuxiPadOSAndroidPower Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Product Color: Black
Height: 0.76" (19.30 mm)
Width: 3.34" (84.84 mm)
Weight (Approximate): 3.20 oz (90.72 g)
Miscellaneous
Package Contents:
- USB4 Mobile Dock
- 1 x User Guide
Compatibility:
Compatible Devices:
- MacBook Air/Pro 2021 or Later
- MacBook Air/Pro 2016-2020
- iPad Pro 2018 or later
- iPad Air 2020 or later
- Chrome OS laptop with Thunderbolt 3/4, USB 3.0 or later Type C with DP Alt-Mode
- Windows OS laptop with Thunderbolt 3/4, USB 3.0 or later Type C with DP Alt-Mode
Environmentally Friendly: Yes
Country of Origin: China
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Waste Electrical and Electronic Equipment Directive (WEEE)TAA Compliant: No
Warranty
Limited Warranty: 2 Year
