Product ID: 1071197556

Category:

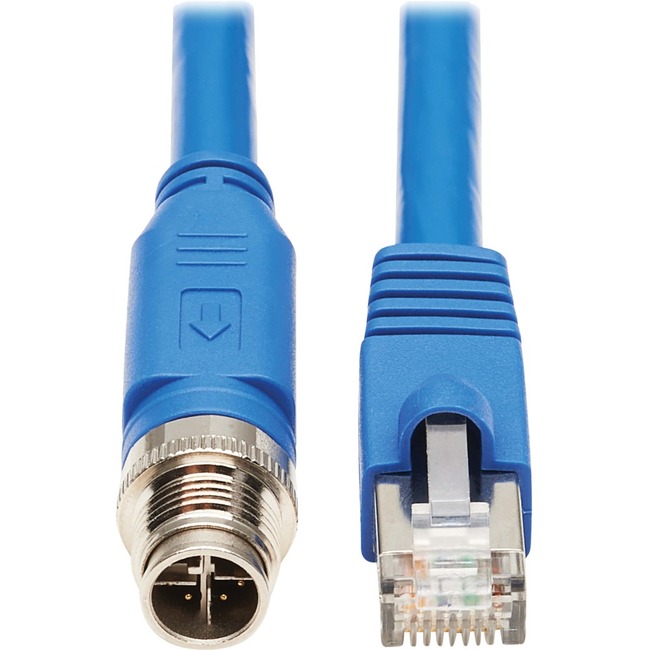

Tripp Lite series NM12-6A2-05M-BL Cat.6a F/UTP Network Cable


Tripp Lite series NM12-6A2-05M-BL Cat.6a F/UTP Network Cable

Price (CDN): $79.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $79.95

Quantity:




Description:
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: NM126A205MBL
Brand Name: Tripp Lite series
Product Model: NM12-6A2-05M-BL
Product Name: NM12-6A2-05M-BL Cat.6a F/UTP Network Cable
Marketing Information:

Cat6a M12 Cable Recommended for Industrial and Other Harsh Environments
This M12 X-Code cable connects 10 GbE networks in wet/humid environments, places subject to vibration and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, airports, railways and machine shops. The circular M12 connector with 12-millimeter locking thread is especially designed for washdown and corrosive applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, transportation and food/beverage facilities.

IP68 Rating Denotes Resistance to Dust and Water
The IP68 rating means the M12 connector end is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this Cat6a cable supports high-power 60W PoE, it can supply the power to operate compatible data, voice, security and audio/video PoE devices, such as surveillance cameras, VoIP telephones and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, as well as installing separate power and data cables. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

CMR-LP Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the NM12-6A2-05M-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.

Colored Blue to Avoid Misidentification That Can Cause Costly Downtime
This Cat6a F/UTP copper cable features a blue PVC jacket that allows easy, fast identification in field devices, controllers and switches and helps prevent the cable from becoming inadvertently disconnected.


Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Length: 16.4 ft (5 m)
Connector Type on First End: M12-X Network - Male
Connector on First End Details: 1 x M12-X Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Shielding: Yes
Jacket Type: CMR-LP
Device Supported:
  • Network Device
  • Controller
  • Switch
  • PoE Device
  • Surveillance Camera
  • IP Phone
  • Access Control Device
  • American Wire Gauge: 23 AWG
    Data Transfer Rate: 10 Gbit/s
    Boot Type: Snagless
    Features:
  • PoE
  • PoE++
  • Vibration Resistant
  • Moisture Resistant
  • Temperature Resistant
  • Dust Resistant
  • Water Resistant
  • Lockable
  • Corrosion Resistant
  • Damage Resistant
  • Physical Characteristics
    Color Family: Blue
    Product Color: Blue
    Jacket Material: Polyvinyl Chloride (PVC)
    Miscellaneous
    Environmentally Friendly: Yes
    Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin: Taiwan
    TAA Compliant: Yes
    Warranty
    Limited Warranty: Lifetime
