Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7Z71A01VNA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: SR630 V2
Product Model: 7Z71A01VNA

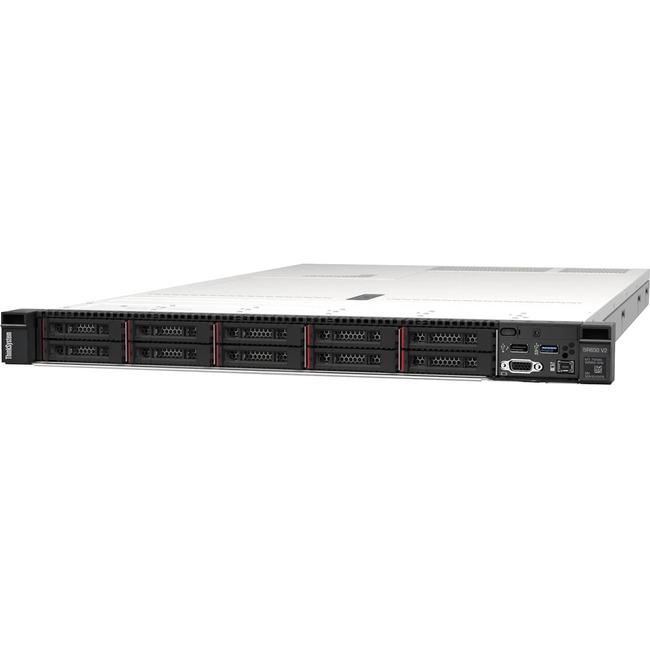

Product Name: ThinkSystem SR630 V2 7Z71A01VNA Server
Marketing Information:
The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type: Server
Processor
Number of Processors Supported: 2
Chipset
Chipset Manufacturer: Intel
Chipset Model: C621A
Memory
Maximum Memory Supported: 4 TB
Memory Technology: TruDDR4
Memory Clock Speed: 3.20 GHz
Total Number of Memory Slots: 32
Error Checking: ECC
Signal Processing: Registered (Buffered)
Storage
Optical Drive Type: No
Controllers
Controller Type: Serial ATA/600
Controller Model: Intel RSTe
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
I/O Expansions
Hot Swappable Bays: Yes
Display & Graphics
Graphics Controller Model: G200
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
VGA: Yes
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC)
Operating System
Operating System Supported: Windows ServerRed Hat Enterprise LinuxSuSE Linux Enterprise ServerPower Description
Input Voltage: 230 V AC
Number of Power Supplies Supported: 2
Plug/Connector Type: C13/C14
Miscellaneous
Security Features: Administrator and power-on password Trusted Platform Module (TPM) Self-encrypting drives with support for IBM Security Key Lifecycle Manager
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 3.0China Energy Conservation Program (CECP)Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Depth: 30.40" (772.16 mm)
Weight (Approximate): 57.98 lb (26300 g)
0 items
):
$4,717.95
