Black Box MultiPower Miniature Transceiver/Media Converter

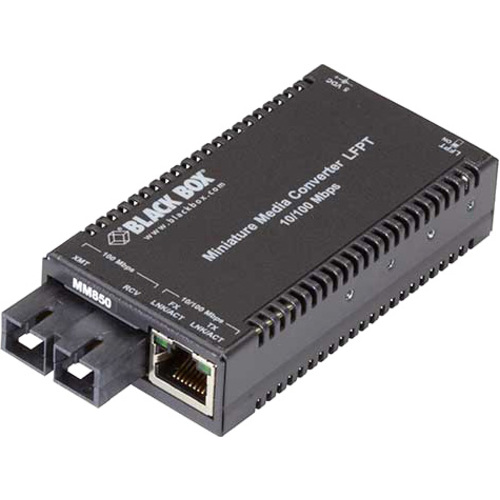

Black Box MultiPower Miniature Transceiver/Media Converter

Price (CDN): $220.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $220.95

Quantity:




Description:
General Information
Manufacturer: Black Box Corporation
Manufacturer Part Number: LHC041A-R4
Brand Name: Black Box
Product Line: Multipower Miniature
Product Name: MultiPower Miniature Transceiver/Media Converter
Marketing Information:

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber versions. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).


Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
  • Fiber Mode Supported: Multi-mode
    Fiber Optic Cable Wavelength: 850 nm
    Maximum Distance Supported: 0.50 km (0.31 Mile)
    Fiber Optic Cable Core/Cladding Specification:
  • 50/125 µm
  • 62.5/125 µm
  • Network & Communication
    Ethernet Technology: Fast Ethernet
    Network Technology:
  • 10/100Base-T
  • 100Base-SX
  • Power Description
    Power Source: Power Supply
    Physical Characteristics
    Form Factor:
  • Desktop
  • Rack-mountable
  • Height: 1" (25.40 mm)
    Width: 2" (50.80 mm)
    Depth: 4.70" (119.38 mm)
    Weight (Approximate): 1.20 lb (544.31 g)
    Miscellaneous
    Package Contents:
    • MultiPower Miniature Transceiver/Media Converter
    • AC Power Supply

    Environmentally Friendly: Yes
    Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Country of Origin: Taiwan
    TAA Compliant: Yes
    Warranty
    Limited Warranty: 6 Year
    Additional Warranty Information:

    Double Diamond™ Warranty (Standard)

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our warranty that protects your Black Box® brand products from accidental damage, including drops, water, and power surges.

    The FST ETH MED CONV 10/100Mbps COP to 100Mbps MM FBR 850nm 0.5km SC comes with a standard 6 Year Double Diamond™ Warranty (Standard) warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!
