Description:
General Information
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: GALIL-4-C(PAIR)
Brand Name: Kramer
Product Line: Galil
Product Model: 4-C

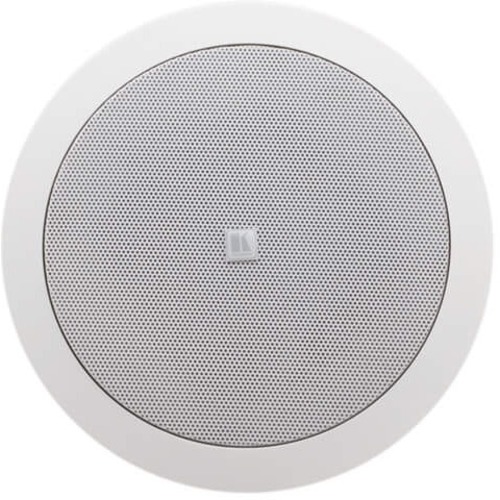

Product Name: Galil 4-C 4-Inch, 2-Way Closed-Back Ceiling Speakers
Marketing Information:
The Galil 4-C Closed-back Compact Ceiling Speaker features a multi-tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Galil 4-CO open-back version is also available.
- Type - 2-way coaxial speaker.
- Woofer - 4" polypropylene cone.
- Tweeter - 0.5" Mylar dome.
- Impedance - 8Ω.
- Power Handling - 30W RMS, 80W continuous program.
- Transformer Taps - 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z); 100V: 30W/15W/7.5W/Off (Lo-Z).
- UL 1480 & 2043 Listed
- Package Includes - 2 speakers (1 pair), ceiling mounting kit, template and user manual.
- Installation Dimensions - External diameter: 19.5cm (7.68"); cutout diameter: 16.7cm (6.57")
Product Type: Speaker
Technical Information
Crossover Type: 2-way
RMS Output Power: 30 W
PMPO Output Power: 80 W
Woofer Driver Size: 4" (101.60 mm)
Woofer Driver Material: Polypropylene
Tweeter Driver Size: 0.50" (12.70 mm)
Tweeter Driver Material: Mylar Dome
Minimum Frequency Response: 85 Hz
Maximum Frequency Response: 20 kHz
Sensitivity: 97 dB
Impedance: 8 Ohm
Physical Characteristics
Product Color: White
Form Factor: Ceiling Mountable
Woofer Diameter: 4" (101.60 mm)
Depth: 4.21" (107 mm)
Diameter: 7.68" (195 mm)
Cutout Diameter: 6.57" (167 mm)
Weight (Approximate): 3.50 kg
Miscellaneous
Package Contents:
- Galil 4-C 4-Inch, 2-Way Closed-Back Ceiling Speakers
- Ceiling Mounting Kit
- Template
- User Manual
Application/Usage:
Conference RoomBoardroomClassroomHotelRestaurantCountry of Origin: China
Warranty
Limited Warranty: 7 Year
