Description:
General Information
Manufacturer: PANDUIT CORP
Manufacturer Part Number: P24F01M
Brand Name: Panduit
Product Line: SmartZone
Product Series: MPO
Product Model: P24F01M

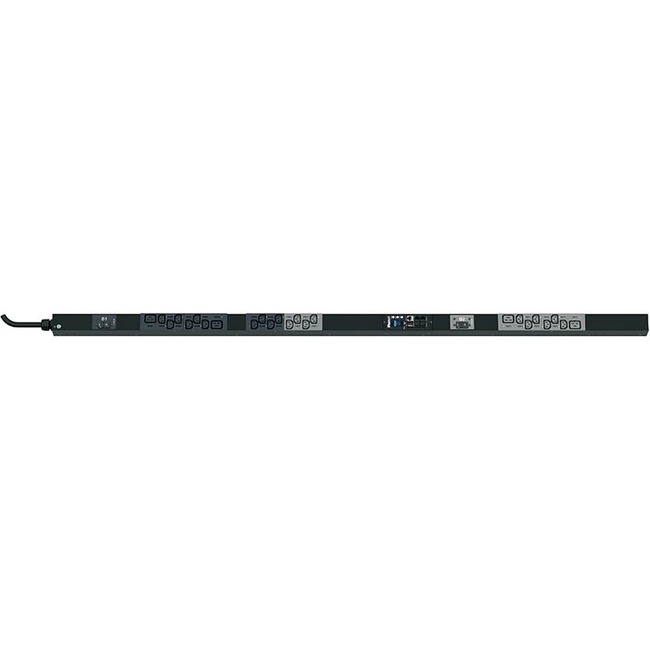

Product Name: P24F01M Vertical Intelligent Power Distribution Unit
Marketing Information: The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
Packaged Quantity: 1
Product Type: PDU
Technical Information
PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA L6-30P
Receptacle Type: IEC 60320 C13IEC 60320 C19Receptacle Detail: 20 x IEC 60320 C134 x IEC 60320 C19Protection Type: Overload ProtectionDouble PolePower Description
Input Voltage: 230 V AC
Output Voltage: 208 V AC
Output Voltage Range: 120 V AC - 240 V AC
Power Rating (VA): 5 kVA
Input Current: 30 A
Management
Remote Outlet Switching: Yes
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Height: 68.90" (1750.06 mm)
Width: 2.05" (52.07 mm)
Depth: 2.10" (53.34 mm)
Miscellaneous
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Warranty
Limited Warranty: 3 Year
