Description:
General Information
Manufacturer: TRENDnet
Manufacturer Part Number: TI-IG60
Brand Name: TRENDnet
Product Model: TI-IG60

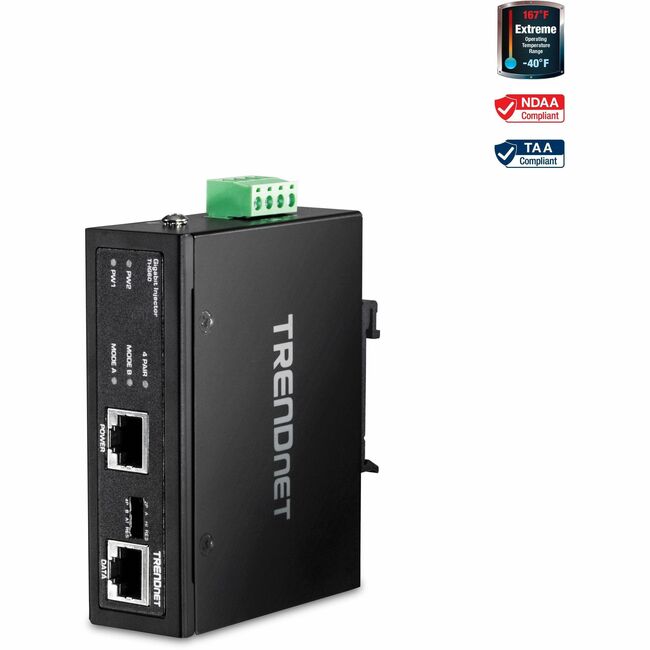

Product Name: Hardened Industrial 60 Watt UPoE Injector
Marketing Information: TRENDnet's TI-IG60 is a reliable IP30 rated Industrial Gigabit UPoE Injector with hardened components rated for extreme industrial environments. Connect the TI-IG60 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG60 supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power PoE+ (36 W), or 60 Watt PoE device. Dual redundant power inputs (power supply sold separately: TI-S15052, TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.
- GIGABIT PORTS: 1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-IG60, Hardened Industrial 60 Watt Gigabit UPoE Injector is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Injector,, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- UPoE: Supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power PoE+ (36 W), or 60 Watt PoE device
- REDUNDANT POWER: Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S15052, TI-S12048)
- DIN-RAIL/WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware
- EXTREME TEMPERATURES: Hardened converter is rated for an operating temperature range of -40 to 75 ¦C (-40 to 167 ¦F)
- SHOCK AND VIBRATION RESISTANT: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- ELECTRO MAGNETIC COMPLIANCE: Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
More from the Manufacturer
Product Condition: New
Product Type: PoE Injector
Technical Information
Protection Type: Overload Protection
Power Description
Input Voltage: 48 V DC56 V DCMaximum Output Power: 72 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
Form Factor: External
Mount Type: DIN Rail/Wall Mountable
Height: 3" (76.20 mm)
Width: 5" (127 mm)
Length: 10" (254 mm)
Weight (Approximate): 4.87 oz (138 g)
Miscellaneous
Package Contents:
- Hardened Industrial 60 Watt Gigabit PoE+ Injector
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail And Wall Mount Kit
Certifications & Standards:
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
