General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT8KRMXLT-5KTF
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SRT8KRMXLT-5KTF

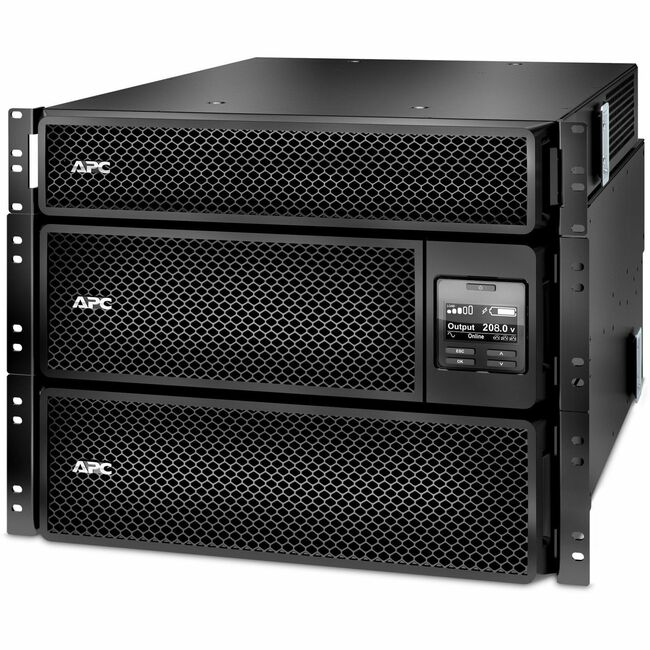

Product Name: Smart-UPS SRT 8kVA RM with 208V to 120V 2U Step-Down Transformer
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line 8U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 12x NEMA 5-20R, 1x NEMA L6-30R, 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Packaged Quantity: 1 / Pallet
Product Type: Double Conversion Online UPS

Technical Information

---

Receptacle Type:

NEMA 5-20R

NEMA L6-20R

NEMA L6-30R

Receptacle Detail:

1 x Hard Wire 3-wire (2PH + G)

12 x NEMA 5-20R

4 x NEMA L6-20R

1 x NEMA L6-30R

Number of Battery & Surge Outlets: 17

Power Description

---

Load Capacity (VA): 8 kVA
Load Capacity (Watt): 8 kW
Input Voltage: 208 V
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 480 J

Battery Information

---

Battery Chemistry: Lead Acid
Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

---

Product Color: Black
Height: 13.86" (352 mm)
Width: 17.01" (432 mm)
Depth: 28.15" (715 mm)
Rack Height: 8U
Form Factor: Rack-mountable
Weight (Approximate): 340.99 lb (154670.46 g)

Miscellaneous

---

Package Contents:

Smart-UPS SRT 8kVA RM with 208V to 120V 2U Step-Down Transformer

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Temperature probe

USB cable

Warranty card

Web/SNMP management card

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
