Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT5KRMXLT-5KTF
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS On-Line

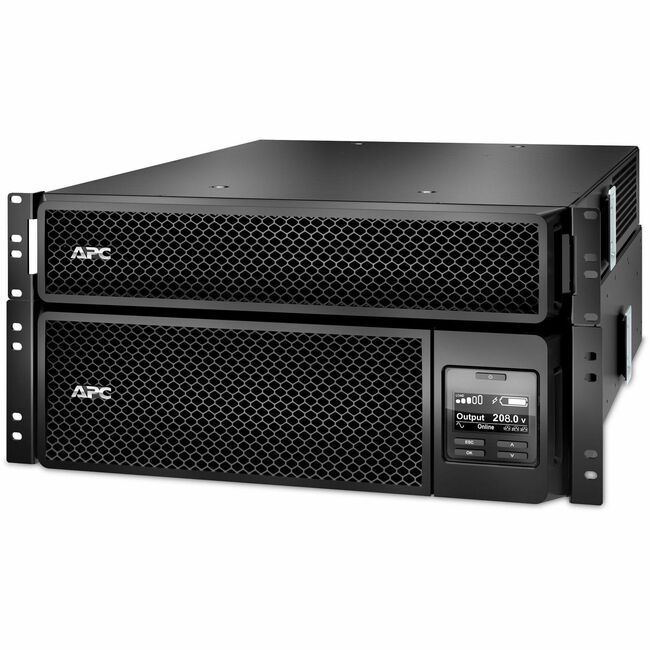

Product Name: Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 12 NEMA 5-20R, 2 NEMA L6-30R, and 2 NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
More from the Manufacturer
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-30P
Receptacle Detail: 12 x NEMA 5-20R2 x NEMA L6-20R2 x NEMA L6-30RNumber of Battery & Surge Outlets: 15
Cord Length: 10 ft (3.05 m)
Power Description
Load Capacity (VA): 5 kVA
Load Capacity (Watt): 4.25 kW
Input Voltage: 208 V
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 480 J
Battery Information
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 1.50 Hour
Physical Characteristics
Product Color: Black
Height: 8.58" (218 mm)
Width: 17.01" (432 mm)
Depth: 28.31" (719 mm)
Rack Height: 5U
Form Factor: Rack-mountable
Weight (Approximate): 217.99 lb (98878.60 g)
Miscellaneous
Package Contents: Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer Documentation CDRack mounting bracketsRack mounting hardwareRack mounting support railsUSB cableUser manualWarranty cardWeb/SNMP management card
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
