Description:
General Information
Manufacturer: Black Box Corporation
Manufacturer Part Number: LFP412
Brand Name: Black Box
Product Series: LFP410
Product Model: LFP412

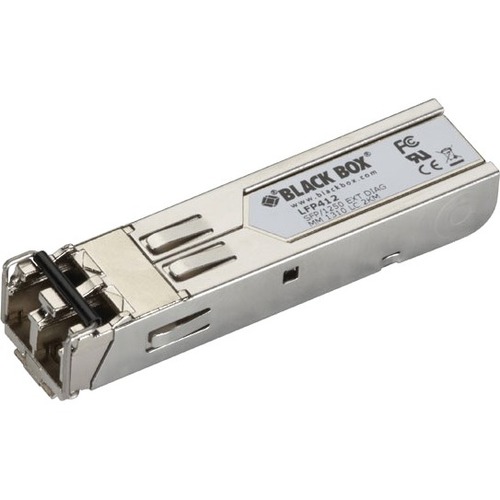

Product Name: LFP412 SFP (mini-GBIC) Module
Marketing Information:
Modular flexible optical transceivers for data communications equipment.
This SFP is designed to support throughput speeds of up to 1250 Mbps, making it ideal for high-speed applications. It provides essential link information, including SFP type, fiber link length, wavelength, and bit rate. The extended diagnostics enable this SFP also to report temperature, TX and RX power, voltage, and bias current. The hot-pluggable interface allows for easy swapping of SFPs without downtime, ensuring flexibility as your network requirements evolve. It is compatible with SFP slots on most network devices, making it a versatile option for a wide range of systems.
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage: Optical NetworkData NetworkingInterfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x Duplex LC 1000Base-X Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Optic Cable Wavelength: 1310 nm
Fiber Mode Supported: Multi-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
Maximum Distance Supported: 2 km (1.24 Mile)
Maximum Data Transfer Rate: 1.25 Gbit/s
Physical Characteristics
Form Factor: Hot-pluggable
Height: 2.20" (55.88 mm)
Width: 0.60" (15.24 mm)
Depth: 0.50" (12.70 mm)
Weight (Approximate): 0.58 oz (16.33 g)
Miscellaneous
TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 1 Year
