General Information

---

Manufacturer: StarTech.com
Manufacturer Part Number: PEX1394B3LP
Brand Name: StarTech.com

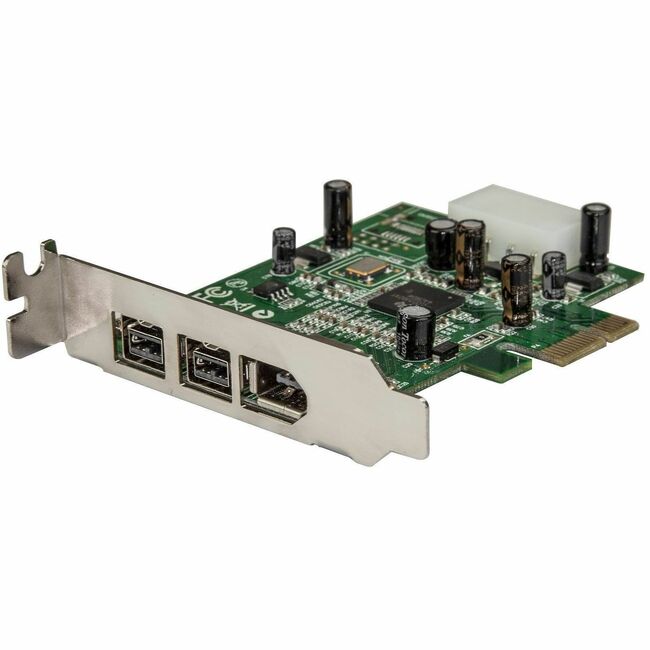

Product Name: 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Marketing Information: This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip. More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: FireWire Adapter

Technical Information

---

Host Interface: PCI

Media & Performance

---

Data Transfer Rate: 800 MB/s

Interfaces/Ports

---

Total Number of FireWire/i.LINK Ports: 3
Number of FireWire/i.LINK 400 Ports: 1
Number of FireWire/i.LINK 800 Ports: 2

Software

---

Operating System Supported:

Windows 2000

Windows XP

Windows Vista

Windows 7

Windows 8

Windows 8.1

Windows 10

Windows 11

Windows Server 2003

Windows Server 2008 R2

Windows Server 2012

Windows Server 2016

Windows Server 2019

Windows Server 2022

Mac OS X 10.6 Snow Leopard

Mac OS X 10.8 Mountain Lion

Mac OS X 10.10 Yosemite

Mac OS X 10.11 El Capitan

Mac OS X 10.12 Sierra

Mac OS X 10.13 High Sierra

Mac OS X 10.14 Mojave

Mac OS X 10.15 Catalina

Mac OS X 11.0 Big Sur

Mac OS X 12.0 Monterey

Mac OS X 13.0 Ventura

Linux 3.5.x

Physical Characteristics

---

Form Factor: Plug-in Card
Height: 0.80" (20.32 mm)
Width: 2.30" (58.42 mm)
Length: 3.30" (83.82 mm)
Weight (Approximate): 1.50 oz (42.52 g)

Miscellaneous

---

Package Contents:

• 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
• 1 x FireWire Cable
• 1 x Full Profile Bracket
• 1 x Software CD
• 1 x Instruction Manual

Platform Supported:

PC

Mac

Linux

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes

Warranty

---

Limited Warranty: Lifetime
