Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LDM136-151C
Brand Name: ViewSonic
Product Model: LDM136-151C

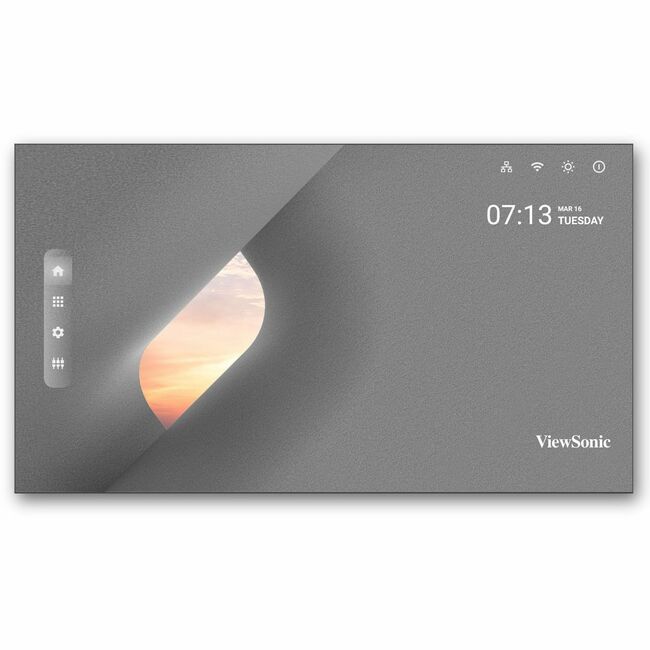

Product Name: Pre-configured 136" 1080p All-In-One Direct View LED Display
Marketing Information:
The ViewSonic® LDM136-151C is an innovative All-in-One Direct View LED display. With a huge 136" screen size and advanced Chip-on-Board (COB) technology, the LDM136-151C is built to impress as a centerpiece in any higher education auditorium or lecture hall, as well as in corporate conference rooms, boardrooms and lobbies. This display boasts immersive and stunning visuals thanks to Chip-on-Board (COB) technology with Full HD resolution that pairs perfectly with an impressive 600-nit high brightness and 10,000:1 contrast ratio. This ensures content and messages are always easy to see, even in brightly lit environments. As a true all-in-one solution, the LDM136-151C includes the display, controller, and all components in a single part number, making specification, purchasing, and setup incredibly simple. With a high brightness of 600 nits, an incredible 10,000:1 contrast ratio, and powerful dual 30W speakers, this display provides vibrant, high-impact visuals and immersive sound for an exceptional viewing experience.
Product Type: Digital Signage Display
Technical Information
Ingress Protection (IP) Rating: IP54
Impact Protection (IK) Rating: IK08
Memory
Standard Memory: 32 GB
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 11.33 ft (3454.40 mm)
Screen Size Class: 11.33 ft (3454.40 mm)
Display Screen Type: LCD
Display Resolution: 1920 x 1080
Backlight Technology: Direct View LED
Graphics Controller Manufacturer: ARM
Graphics Controller Model: Mali-T860MP4
Aspect Ratio: 16:9
Maximum LED Life: 11.4 Year
Video
Scan Format: 1080p
Dynamic Contrast Ratio: 10,000:1
Brightness: 600 cd/m²
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Number of Network (RJ-45) Ports: 3
Number of HDMI 2.0 Ports: 4
Software
Operating System: Android 9.0 Pie
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
Mount Type: Wall Mountable
Height: 72.22" (1834.50 mm)
Width: 118.58" (3012 mm)
Depth: 1.61" (41 mm)
Weight (Approximate): 372.58 lb (169000 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Miscellaneous
Package Contents:
- Pre-configured 136" 1080p All-In-One Direct View LED Display
- Power Cord
- LAN Cable
- IR Extender Cable
- Remote Control
- Installation Guide
- Wall Mount
- LD-MK-004
- LD-MK-006
Application/Usage:
CorporateConference RoomBoardroomLobbyCommercialBusinessEnergy Star: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
TAA Compliant: No
Warranty
Limited Warranty: 5 Year
Additional Warranty Information: 5-year limited warranty on parts and labor, on-site service
