Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7DH5A01VNA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST45 V3
Product Model: 7DH5A01VNA

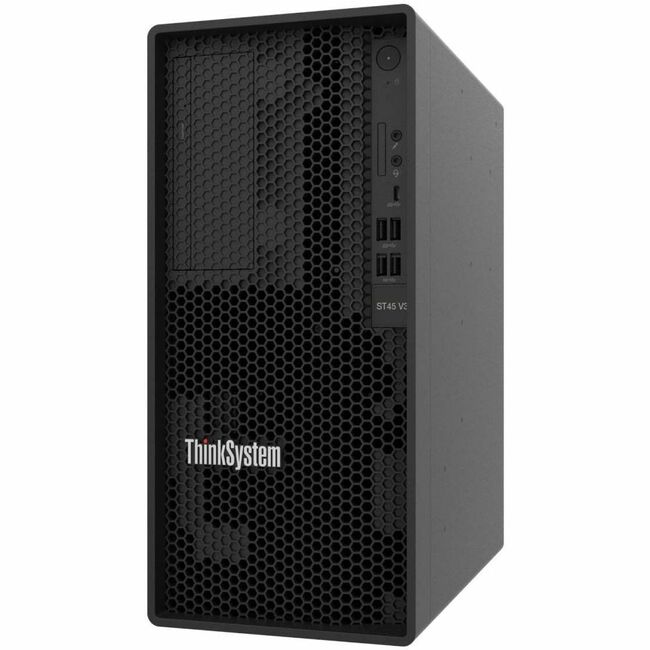

Product Name: ThinkSystem ST45 V3 7DH5A01VNA Server
Marketing Information:
The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4005 Series processor (formerly codenamed "Grado").
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: AMD
Processor Type: EPYC
Processor Model: 4244P
Processor Core: Hexa-core (6 Core)
Processor Speed: 3.80 GHz
Cache: 32 MB
Chipset
Chipset Manufacturer: AMD
Chipset Model: PRO-665
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 64 GB
Memory Technology: TruDDR5
Memory Clock Speed: 5.60 GHz
Total Number of Memory Slots: 2
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Unregistered (Unbuffered)
Controllers
Controller Type: Serial ATA/600
RAID Supported: No
I/O Expansions
Number of Total Expansion Bays: 2
Number of 3.5" Bays: 2
Number of LFF Bays: 2
Hot Swappable Bays: No
Total Number of Expansion Slots: 2
PCI Express Details: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC)
DisplayPort: Yes
Operating System
Operating System Supported: Windows Server 2022Red Hat Enterprise Linux 9.4SUSE Linux Enterprise Server 15 SP6Ubuntu 24.04 LTS x64Red Hat Enterprise Linux 9.5Windows Server 2025Red Hat Enterprise Linux 9.6Red Hat Enterprise Linux 9.7Red Hat Enterprise Linux 10Red Hat Enterprise Linux 10.1SUSE Linux Enterprise Server 15 SP7SUSE Linux Enterprise Server 16Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 300 W
Hot Swappable Power Supply: No
Miscellaneous
Package Contents:
- ThinkSystem ST45 V3 7DH5A01VNA Server
- Power Cord
Security Features:
- Power-on password
- Administrator's password
- Trusted Platform Module (TPM)
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)GREENGUARDEnergy Efficiency Certification:
China Energy Conservation Program (CECP)ENERGY STAR 4.0Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor: Tower
Height: 14.80" (376 mm)
Width: 6.69" (170 mm)
Depth: 12.44" (316 mm)
Weight (Approximate): 18.87 lb (8560 g)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
