Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: IFP8663
Brand Name: ViewSonic
Product Line: ViewBoard
Product Series: IFP63
Product Model: IFP8663

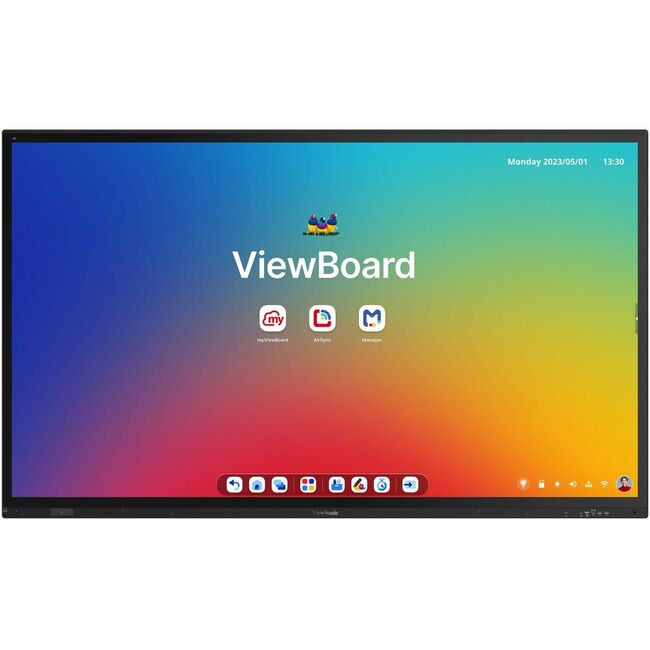

Product Name: ViewBoard IFP8663 Collaboration Display
Marketing Information:
The ViewSonic IFP63 Series Interactive Display is a powerful blend of advanced hardware, enterprise-grade software, and sleek design - purpose-built for modern conference rooms, boardrooms, and hybrid teams. Featuring ultra-responsive Projected Capacitive (PCAP) touch, a stunning bezel-less 4K display, and Android 15 EDLA certification, it delivers the performance, security, and collaboration tools today's businesses demand. Backed by ViewSonic's integrated software suite and engineered for durability in high-use environments, the IFP63 Series is the smart, future-ready choice for organizations driving innovation and productivity.
Product Type: Collaboration Display
Display & Graphics
Viewable Screen Size: 86" (2184.40 mm)
Screen Size Class: 86" (2184.40 mm)
Display Screen Type: LCD
Backlight Technology: Direct LED
Screen Mode: 4K UHD
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 6.50 ms
Contrast Ratio: 1,200:1
Brightness: 450 cd/m²
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Glass Thickness: 0.12" (3 mm)
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 20
Touchscreen Technology: Projected Capacitive
Processor & Chipset
Processor Manufacturer: Rockchip
Processor Model: RK3576
Processor Core: Octa-core (8 Core)
Memory
Standard Memory: 16 GB
Storage
Flash Memory Capacity: 128 GB
Audio
Speakers: Yes
Number of Speakers: 3
Microphone: Yes
Number of Microphone Array Elements: 8
RMS Output Power: 60 W
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 12
USB: Yes
Network (RJ-45): Yes
Audio Line In: Yes
DisplayPort: Yes
Serial: Yes
Software
Operating System Platform: Android
Operating System: Android 15ViewBoard OSPower Description
Input Voltage: 120 V AC230 V ACPower Consumption: 145 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 800 x 600
Height: 46.16" (1172.50 mm)
Width: 77.24" (1961.90 mm)
Depth: 3.13" (79.50 mm)
Weight (Approximate): 143.52 lb (65100 g)
Miscellaneous
Package Contents:
- ViewBoard IFP8663 Collaboration Display
- Power Cord (3m)
- USB-C Cable (1.8m)
- Remote Control
- AAA Battery
- USB Touch Cable (3m)
- 2 x Stylus (a set)
- Quick Start Guide + Compliance statement, RS232 adapter
- 5 x Clamp
- Camera Plate
- 8 x Screw (camera 2+2, wall mount 4)
- HDMI cable 3m
- VB-WIFI-005 WiFi Adapter
Energy Star: Yes
Country of Origin: Vietnam
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification:
China Environmental United Certification Center (CEC)Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
3-year limited warranty on parts, labor and backlight, onsite warranty
