Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 03152-001
Brand Name: AXIS
Product Series: P32
Product Model: P3277-LV

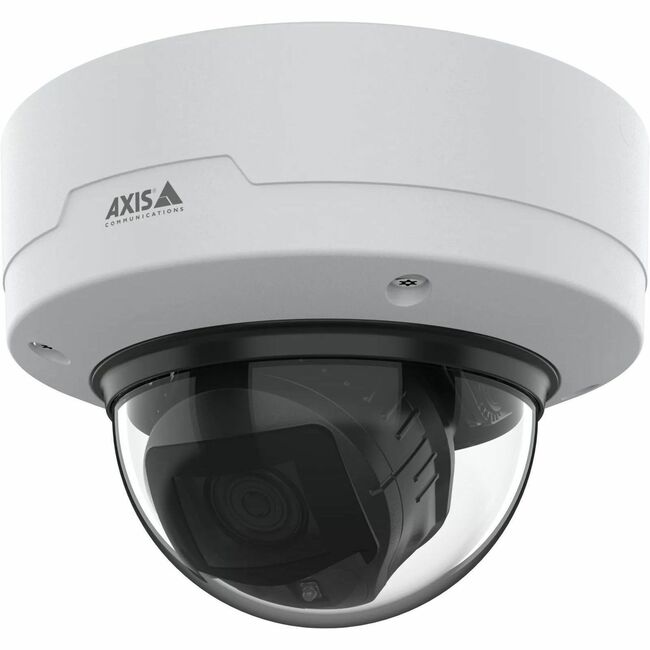

Product Name: P3277-LV Dome Camera
Marketing Information:
Indoor 5 MP AI-powered dome
This AI-powered camera delivers excellent image quality in 5 MP under any light conditions. Built on ARTPEC-9, it offers accelerated performance to run impressive analytics applications on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. In addition, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Audio and I/O connectivity
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Type: Infrared
Camera Iris: P-iris
Wide Dynamic Range (WDR): Yes
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Color Supported: Color
Field of View: Horizontal field of view: 104°-34° Vertical field of view: 76°-26°
Effective Camera Resolution: 5 Megapixel
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileMotion JPEGH.264H.265ZipstreamH.264BH.264MH.264HMaximum Video Resolution: 2592 x 1944
Maximum Frame Rate: 30 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 3 mm (0.12")
Maximum Focal Length: 8.5 mm (0.33")
Lens Included: Yes
Minimum Aperture: f/2.5
Maximum Aperture: f/1.38
Optical Zoom: 2.8x
Exposure
Shortest Shutter Speed: 1/30500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZPreset PointNetwork & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2DiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1UDP/TCP/TLSZeroConfIEEE 802.1X (EAP-TLS)IEEE 802.1ARONVIFStorage
Storage Type: Memory Card
Internal Memory: 2 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 12.60 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonatePlasticMount Type: Bracket MountJunction Box MountForm Factor: Dome
Durability: Vandal ResistantImpact ResistantWeight (Approximate): 1.79 lb (810 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Non-condensing): 10%
Maximum Operating Humidity (Non-condensing): 85%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Forensic WDR3D Noise Reduction2D Noise ReductionDefogPrivacy MaskingAuto Gain ControlBuilt-in MicrophoneDay/NightWide Dynamic RangeAudio DetectionIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- P3277-LV Dome Camera
- Installation Guide
- Terminal Block Connector
- Connector Guard
- Cable Gasket
- Owner Authentication Key
Impact Protection Rating: IK10
Ingress Protection Rating: IP54
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
