Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: LD-A1651F
Brand Name: Sharp
Product Series: LD-AF
Product Model: LD-A1651F

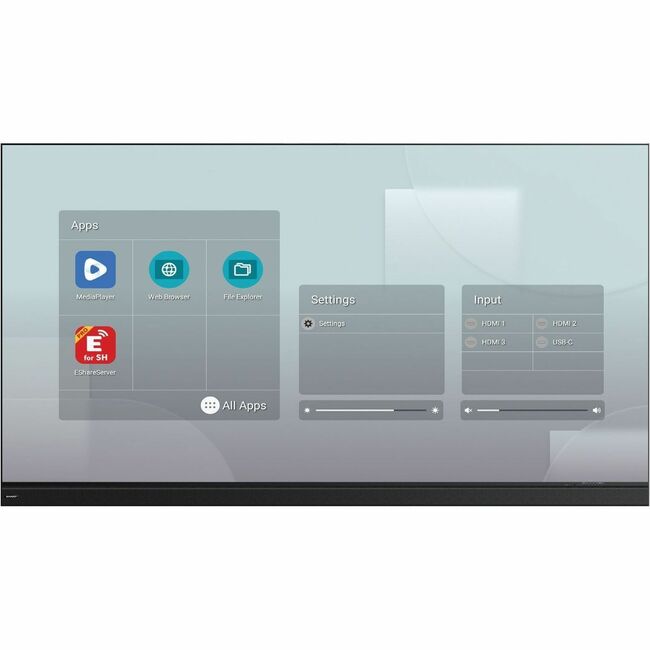

Product Name: 165" LD-AF Series All-in-one FHD LED
Marketing Information:
Sharp's new LD-AF Series of direct view LED displays offer a streamlined, user-friendly solution that differs from standard LED walls. Unlike traditional direct view LED displays, which often require additional components like external controllers or speakers, Sharp's LD-AF Series features built-in speakers, remote control functionality, and an intuitive interface for easy setup and operation. Designed for simplicity and convenience, these displays provide a unified user experience across Sharp's line of system-on-chip (SoC) displays, and a streamlined installation process. Available in 138" and 165" diagonal sizes, they deliver Full HD (1920x1080) imagery, making them perfect for environments like conference rooms and meeting spaces that need a high-quality, hassle-free display.
- Full HD (1920x1080) native resolutionwith a 165" class diagonal for crystal clear and immersive imagery
- Quick and easy installation processwith a single power cable and a hassle-free installation process, the Sharp LD-AF Series can be implemented in as little as two hours
- Powerful System-on-Chip for versatile functionalitypowered by Android 13 with a high-end integrated media player, as well as support for third-party applications (APKs) as needed
- Integrated USB-C connectionthat not only allows for DP-Alt mode, but also upstream cababilities for controlling peripherals through the separate USB-A downstream connection
- NaViSet Administratoris Sharp's proprietary software solution that greatly eases administration and management of larger disply device installations. Control your entire Sharp display ecosystem through this optional software
- Fully compatiblewith Crestron Connected software as well as Crestron XiO Cloud Service
Product Type: Digital Signage Display
Technical Information
Ingress Protection (IP) Rating: IP20
Processor & Chipset
Processor Manufacturer: ARM
Processor Type: Cortex A55
Processor Speed: 1.50 GHz
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 4 GB
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 13.75 ft (4191 mm)
Screen Size Class: 13.75 ft (4191 mm)
Display Screen Type: LCD
Display Resolution: 1920 x 1080
Module Resolution: 320 x 180
Orientation: Landscape
Backlight Technology: Direct View LED
Aspect Ratio: 16:9
Maximum LED Life: 11.4 Year
Audio
Speakers: Yes
Video
Scan Format: 1080p
Dynamic Contrast Ratio: 6,500:1
Brightness: 500 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 1
Number of USB 3.0 Ports: 2
Number of HDMI Inputs: 3
RS-232C Input: Yes
Number of HDMI 2.0 Ports: 3
Software
Operating System: Android 13
Physical Characteristics
Mount Type: Wall Mountable
Height: 85.67" (2176.02 mm)
Width: 12.05 ft (3674.11 mm)
Depth: 2.96" (75.18 mm)
Weight (Approximate): 459 lb (208198.90 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 80%
Miscellaneous
Package Contents: 165" LD-AF Series All-in-one FHD LED Remote control Wall mount
Application/Usage: Conference RoomMeeting RoomIndoor/Outdoor: Indoor
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
