Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02898-001
Brand Name: AXIS
Product Series: P37
Product Model: P3748-PLVE

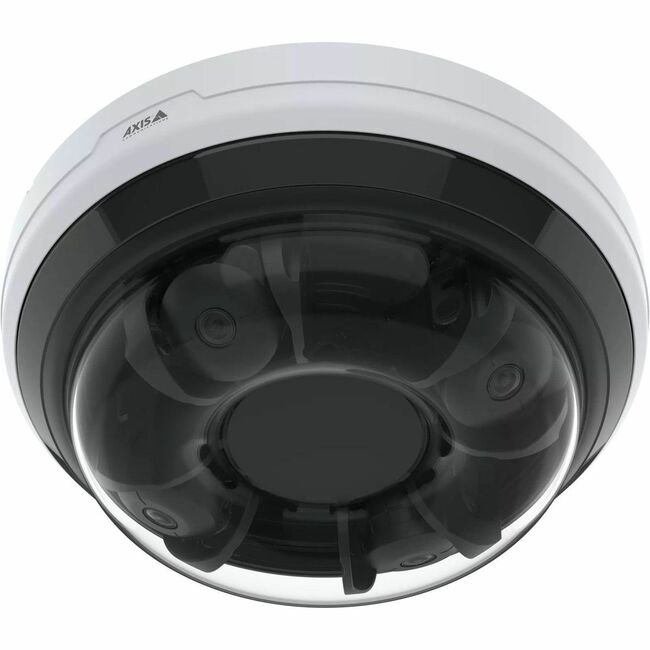

Product Name: P3748-PLVE Panoramic Camera
Marketing Information:
AXIS P3748-PLVE offers four channels with 4K per channel at 12.5/15 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations
- 4x8 MP at 12.5/15 fps per channel
- Remote pan, tilt, roll, zoom (PTRZ)
- Support for powerful analytics
- 360° IR illumination with individually controlled LEDs
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: 4K
Camera Iris: Fixed
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.9"
Color Supported: Color
Field of View: 54.5°-23°
Effective Camera Resolution: 8 Megapixel
Number of Sensors: 4
Video
Video Formats: H.264 (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileMotion JPEGH.264H.265ZipstreamH.264BH.264HH.264MH.265BH.265HH.265MMaximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 15 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.2 mm (0.13")
Maximum Focal Length: 7.4 mm (0.29")
Lens Included: Yes
Minimum Aperture: f/2.7
Maximum Aperture: f/1.6
Optical Zoom: 2.3x
Exposure
Shortest Shutter Speed: 1/14000 Second
Longest Shutter Speed: 1/2 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Gigabit Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2TLSFTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRSTPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1UDP/TCP/TLSZeroConfStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 23.60 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonateAluminumPlasticMount Type: Ceiling MountBracket MountJunction Box MountForm Factor: Dome
Weight (Approximate): 6.61 lb (3000 g)
Environmental Conditions
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Condensing): 10%
Maximum Operating Humidity (Condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Day/NightWide Dynamic RangeWhite BalanceMirrorPrivacy MaskingBuilt-in Speaker2D Noise Reduction3D Noise ReductionMotion DetectionTampering AlarmHuman DetectionVehicle DetectionIndoor/Outdoor: Outdoor
Package Contents:
- P3748-PLVE Panoramic Camera
- Installation Guide
- Connector Guard
- Cable Gasket
- Mounting Plate
- Dome Casing
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
0 items
):
$2,760.95
