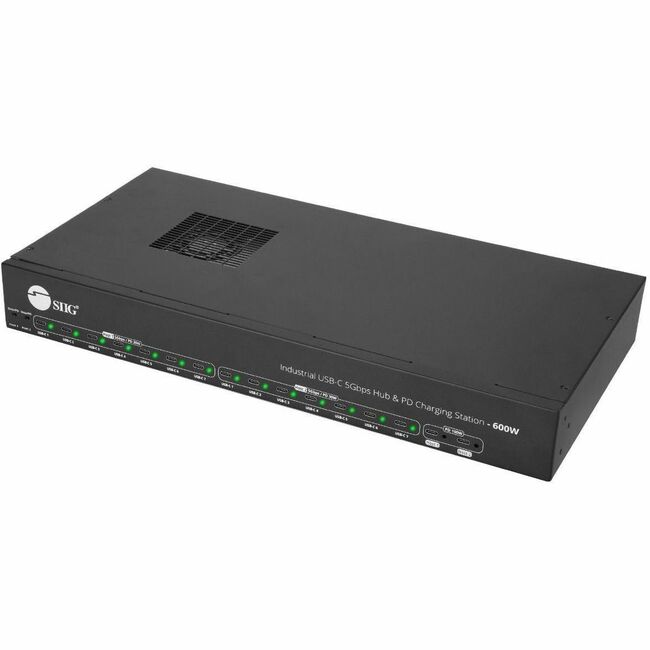

Description:
General Information
Manufacturer: SIIG, Inc
Manufacturer Part Number: ID-US0B11-S3
Brand Name: SIIG
Product Name: Charging Station
Marketing Information:
Industrial Grade USB-C 5Gbps Hub & PD Charging Station - 600W, Adds 16 USB-C Charging Ports, 2-port 100W & 14-port Charging up to 30W; 14 Port USB Hub, Data Transfer up to 5Gbps, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, ESD Protection, Metal Housing, UL Certification
Features | Unrivaled Charging Capability
600W total power output ensures sufficient power for all connected devices16 USB-C charging ports2 ports deliver up to 100W for fast charging laptops and tablets14 ports offer up to 30W for charging smartphones, wearables, and other devicesSupports PD 2.0 & 3.0 ensuring compatibility with a wide range of devicesMultiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging optionsBuilt-in Meanwell brand power IC with UL certificationUSB 5Gbps Data Transfer
Delivers 14-port USB-C data port via one system or Dual system share the dual USB-C input portSupport data transfer up to 5Gbps and PD charging back to system up to 100WEffortlessly handle large files, backups, and data-intensive tasksRobust Safety Features
Over Current Protection: Guard against excessive current and potential damageOver Voltage Protection: Ensure safe voltage levels for all connected devicesOver Heating Protection: Smart temperature control to prevent overheatingShort Circuit Protection: Instant response to protect your devices from electrical mishapsESD Protection: Safeguard against electrostatic discharge for longevityEnsures charging station and the connected devices safeMultiple Connectivity Ports
2x USB-C Input: Host 1&2, PD 100W14x USB-C Output: Data transfer up to 5Gbps, PD 30W19" Rack Mountable Metal Housing
Heat dissipation and durable metal shell rack, can be mounted into a standard 2U of EIA-standard 19-inch rack using ear-mounts (included)
Industrial Grade Durability
Withstands wear and tear in various harsh environments
Power Saving
It is designed with a power switch to allow users to conserve energy when the hub is not in use. There is also a built-in LED to indicate power status
Automatic Temperature Control
Enables to turn on/off the fans automatically according to the temperature setup
>55°C: Start the fans automatically<55°C: Cut off the fans automatically More from the Manufacturer
Packaged Quantity: 1
Product Type: Charging Station
Technical Information
Device Supported: SmartphoneTabletNotebookWearable DeviceUSB Type C DeviceGaming ConsoleHard Disk DriveScannerPrinterBlood Glucose MeterUltrasound MachineUniversal Adapter: Yes
Cable Length: 3.3 ft (1 m)
Fast Charging: Yes
Features: Overcurrent ProtectionOvervoltage ProtectionOverheat ProtectionShort Circuit ProtectionLED IndicatorOver Temperature ProtectionPower Description
Input Voltage: 120 V AC
Frequency: 50 Hz60 HzOutput Voltage: 5 V DC9 V DC12 V DCMaximum Output Power: 600 W
Maximum Output Current: 3 A
Maximum Input Current: 12 A
Interfaces/Ports
USB Type-C: Yes
Number of USB Type-C Ports: 16
USB Power Delivery: 2 x Type-C 100W14 x Type-C 30WPhysical Characteristics
Color Family: Black
Product Color: Black
Material Family: Metal
Height: 2.24" (56.90 mm)
Width: 17.32" (439.93 mm)
Depth: 8.07" (204.98 mm)
Weight (Approximate): 6.38 lb (2893.92 g)
Miscellaneous
Package Contents:
- Charging Station
- 1 x Power Cord
- 2 x Mounting Bracket
- 8 x Screws
- 2 x USB-C to C Cable (1m)
- 1 x User Manual
Brand Compatibility:
AppleSamsungCompatibility:
Apple Devices:
- iPhone 16
- iPhone 15
- iPhone 14
- iPhone 13
- iPhone 12
- iPhone 11
- iPhone X
- iPhone 8
- iPhone 8 Plus
- MacBook 12-inch
- MacBook Air
- MacBook Pro
- iPad
- iPad Mini
- iPad Air
- iPad Pro
Samsung Devices:
- Galaxy Note 8
- Galaxy Note S8
- Galaxy Note S8 plus
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: California Proposition 65
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 2 Year
