General Information

---

Manufacturer: Legrand Group
Manufacturer Part Number: C2G56031
Brand Name: C2G

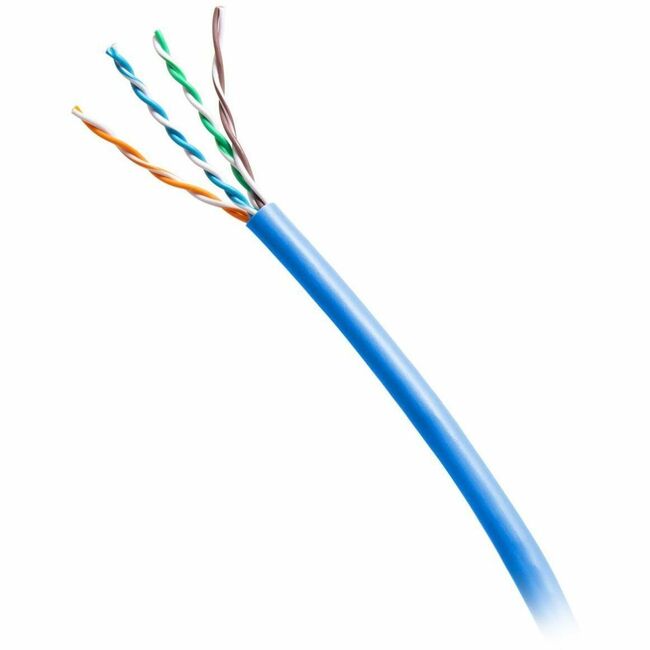

Product Name: Cat.6 UTP Network Cable
Marketing Information: The C2G56031 TAA-Compliant Cat6 Bulk Cable is an excellent choice for customized horizontal network installations that demand high-speed and high-bandwidth performance. This cable is engineered to meet the ANSI/TIA-568.2-D (2018) standard, supporting a data frequency range up to 550 MHz, making it ideal for both commercial and residential networks where reliable and fast connectivity is essential. This bulk cable comes with a riser, CMR-rated jacket, ensuring compliance with safety standards for in-wall installations. Being TAA compliant, the C2G56031 is suitable for government and federal projects, meeting the necessary regulations for these environments. The cable is also packaged in an innovative, sustainable design that reduces plastic and cardboard waste by 40%. This slim packaging not only saves space but also offers a smooth cable-pulling experience, making installations quicker and more efficient, while contributing to a greener, more eco-friendly approach.
Package Type: Bulk
Product Type: Network Cable

Technical Information

---

Cable Type: Category 6
Cable Length: 1000 ft (304.80 m)
Cable Shielding Type: Unshielded Twisted Pair (UTP)
Connector Type on First End: Bare Wire
Connector on First End Details: Barewire
Connector Type on Second End: Bare Wire
Connector on Second End Details: Barewire
Shielding: No
Jacket Type:

CMR

Riser

Device Supported: Network Device
American Wire Gauge: 23 AWG
Number of Pairs: 4
Number of Conductors: 8
Features:

Bendable

Fire Resistant

Flame Retardant

Stranded

Tangle-free

Physical Characteristics

---

Color Family: Blue
Product Color: Blue
Insulation Color:

Blue

Blue/White Stripe

Orange

Orange/White Stripe

Green

White/Green Stripe

White/Brown Stripe

Brown

Product Material:

Bare Copper

Polyolefin

Polyester Yarn

Insulation Material: Polyolefin
Jacket Material: Fire Resistant Polyvinyl Chloride (FR-PVC)
Weight (Approximate): 25.71 lb (11660 g)

Miscellaneous

---

Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin: China/Taiwan
TAA Compliant: Yes

Warranty

---

Limited Warranty: Lifetime
