Description:
General Information
Manufacturer: Vertiv
Manufacturer Part Number: VP4N21A0
Brand Name: Vertiv Geist
Product Series: rPDU
Product Model: MN05M1R0-10D203-2ST5A0H10-S

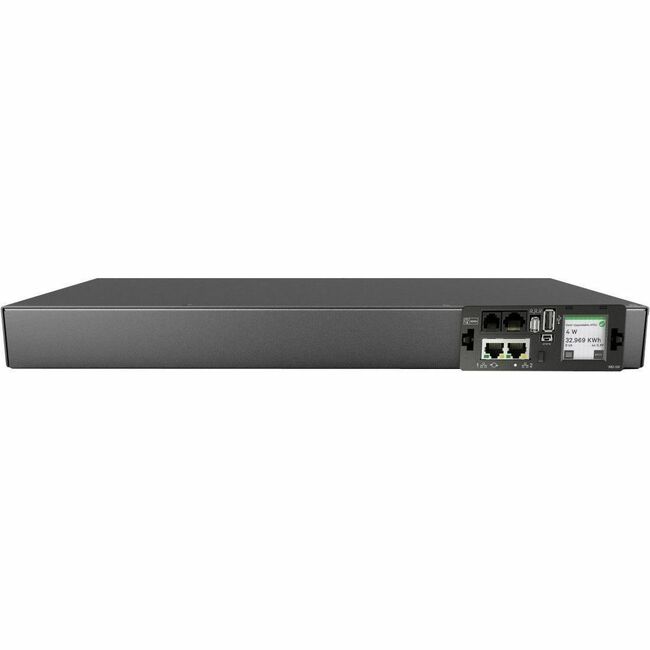

Product Name: rPDU MN05M1R0-10D203-2ST5A0H10-S 10-Outlets PDU
Marketing Information:
Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
- Every unit is 100% tested for reliability and functionality.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Product Type: PDU
Technical Information
PDU Type: Monitored
Plug/Connector Type: NEMA 5-20P
Plug/Connector Detail: 1 x NEMA 5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 10 x NEMA 5-20R
Features: Touch Screen DisplayLCD DisplayLoad Capacity (Watt): 1.90 kW
Power Description
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.90 kW
Input Current: 20 A
Input Frequency: 60 Hz
Management
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: Black
Product Color: Black Powder Coat
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 10 ft (3.05 m)
Height: 1.72" (43.69 mm)
Width: 17" (431.80 mm)
Depth: 8.50" (215.90 mm)
Environmental Conditions
Maximum Operating Temperature: 140°F (60°C)
Miscellaneous
Application/Usage: IT Equipment
Country of Origin: United States
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
