Description:
General Information
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: B650MAORUSELITEAXICE
Brand Name: Aorus
Product Line: Ultra Durable

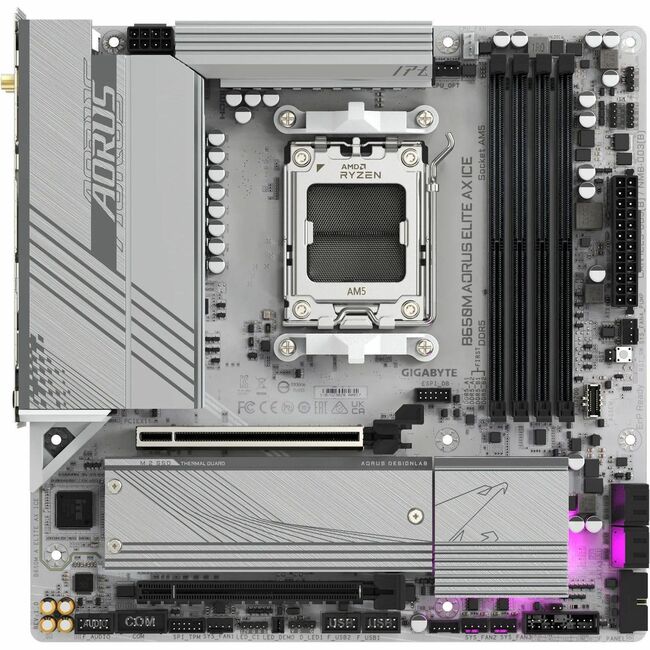

Product Model: B650M AORUS ELITE AX ICE
Product Name: Ultra Durable B650M AORUS ELITE AX ICE Gaming Desktop Motherboard
Marketing Information:
OVERVIEW | Robust VRM Design | Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Digital Twin VRM Design
Ensures stable high-power delivery for advanced overclocking.
12 VCORE Phases
to unleash the full potential of multi-core CPU performance.
2 SOC Phases
for CPU integrated GPU performance and memory control.
2 MISC Phases
provide stable power for CPU-connected PCIe lanes.
Memory | Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B650
Processor Socket: Socket AM5
Processor Supported: Ryzen 9Ryzen 8Ryzen 7Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 8000 MHz7800 MHz7600 MHz7200 MHz7000 MHz6800 MHz6666 MHz6600 MHz6400 MHz6200 MHz6000 MHz5600 MHz5200 MHz4800 MHz4400 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0110Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: AMD
Graphics Controller Model: Radeon Graphics
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.61" (244 mm)
Depth: 9.61" (244 mm)
0 items
):
$294.95
