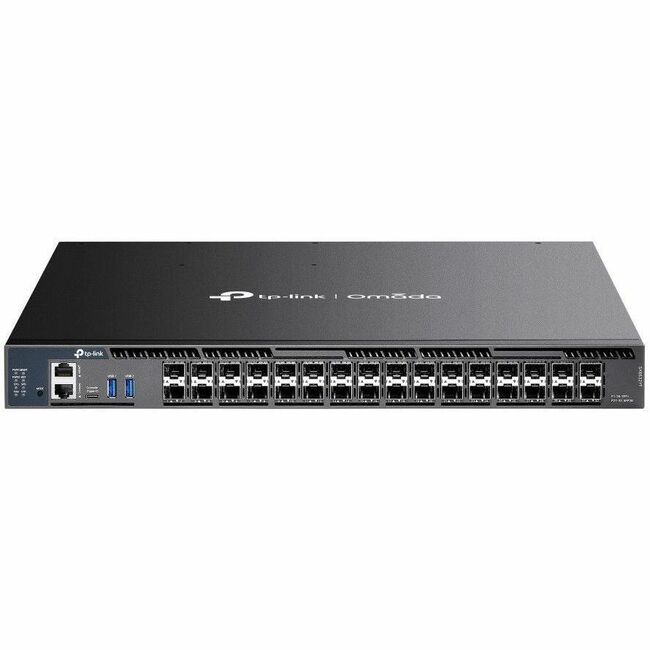

TP-Link Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots


TP-Link Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

Price (CDN): $2,742.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $2,742.95

Quantity:




Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SX6632YF
Brand Name: TP-Link
Product Line: Omada
Product Model: SX6632YF
Product Name: Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
Marketing Information:

STP-Link's Omada Stackable L3 switches provide a wide range of switches, from Gigabit RJ45 ports to 25 Gbps SFP28 slots. They can be used at the core layer, aggregation layer, or access layer of large enterprise and campus networks. The switches include optional PoE+ support, highly scalable Layer 3 routing, and dual power supplies for mission-critical networks

Software Defined Networking (SDN) with Cloud Access

Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network--all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Hassle-Free Centralized Cloud Management

100% centralized cloud management of the whole network from different sites--all controlled from a single interface anywhere, anytime.

Assign Different Management Roles

Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.

Easy and Intelligent Network Monitoring

Comprehensive Protection for the Whole Network The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connection at a glance.


Product Type: Ethernet Switch
Technical Information
Features: Hot-swappable
Interfaces/Ports
Network (RJ-45): Yes
Stack Port: Yes
Port/Expansion Slot Details:
  • 26 x 10 Gigabit Ethernet Expansion Slot
  • 6 x 25 Gigabit Ethernet Expansion Slot
  • Media & Performance
    Media Type Supported:
  • Twisted Pair
  • Optical Fiber
  • Ethernet Technology:
  • 10 Gigabit Ethernet
  • 25 Gigabit Ethernet
  • Network Technology:
  • 10GBase-X
  • 25GBase-X
  • I/O Expansions
    Total Number of Expansion Slots: 32.0
    Expansion Slot Type:
  • SFP+
  • SFP28
  • Number of SFP+ Slots: 26
    Network & Communication
    Layer Supported: 3
    Networking Standards:
  • IEEE 802.1Q
  • IEEE 802.3x
  • IEEE 802.3ah
  • IEEE 802.3ad
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.1p
  • IEEE 802.1x
  • IEEE 802.1ab
  • Management & Protocols
    Manageable: Yes
    Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Power Source:
  • Power Supply
  • AC
  • Power Consumption: 86.70 W
    Physical Characteristics
    Form Factor: Rack-mountable
    Height: 1.73" (44 mm)
    Width: 17.32" (440 mm)
    Depth: 14.96" (380 mm)
