Description:
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: P2CDD143-KVM-SWITCH
Brand Name: StarTech.com

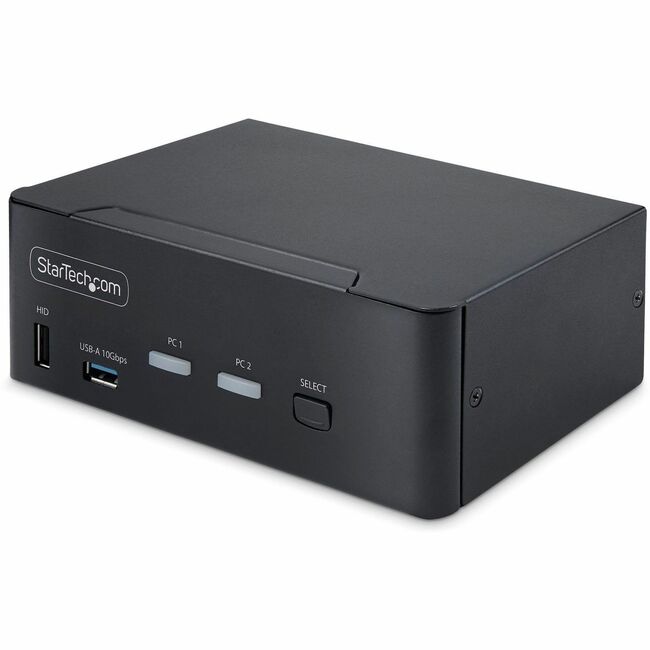

Product Name: KVM Switchbox
Marketing Information:
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
KVM Technology: Digital & Analog
Connectivity Technology: Wired
Number of Computers Supported: 2
Number of Local Users Supported: 1
Features: LED Indicator
Maximum Data Transfer Rate: 1.25 GB/s
Video
Graphic Mode: 8K4KMaximum Video Resolution: 7680 x 4320
Interfaces/Ports
USB: Yes
USB Standard: USB 3.2
DisplayPort: Yes
Number of USB Ports: 8
Number of DisplayPorts: 6
Power Description
Input Voltage Range: 100-240 AC
Frequency: 60 Hz144 Hz120 HzPhysical Characteristics
Form Factor: Desktop
Height: 2.40" (60.96 mm)
Width: 3.90" (99.06 mm)
Length: 6.30" (160.02 mm)
Weight (Approximate): 1.70 lb (771.11 g)
Miscellaneous
Package Contents:
- KVM Switchbox
- 2 x USB-C to USB-A Cable
- 1 x Universal Power Adapter (NA/EU/UK/ANZ)
- 1 x Set of Rubber Feet
- 1 x Quick-Start Guide
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
