Description:
General Information
Manufacturer: SMART Technologies, Inc
Manufacturer Part Number: MX286-V5-PW
Brand Name: SMART Board
Product Series: MX (V5) Pro
Product Model: MX086-V5

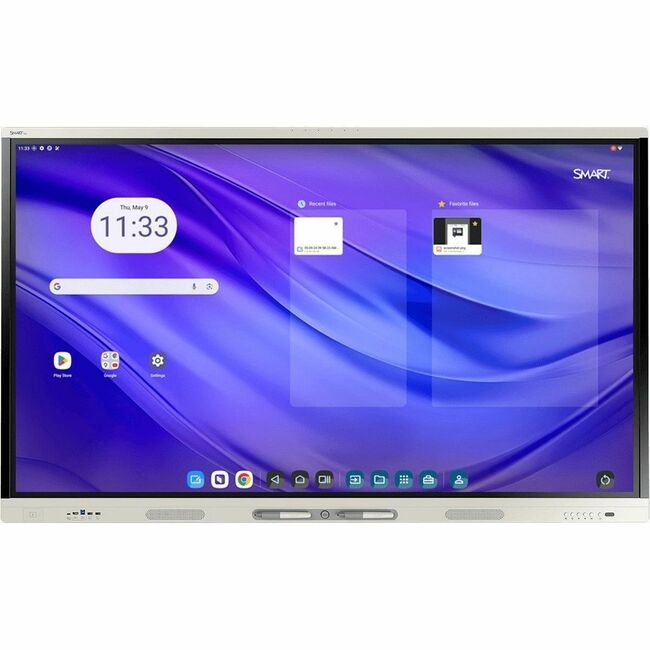

Product Name: MX086-V5 Pro Interactive Display With IQ
Product Type: Collaboration Display
Display & Graphics
Viewable Screen Size: 86" (2184.40 mm)
Screen Size Class: 86" (2184.40 mm)
Display Screen Type: LCD
Backlight Technology: LED
Screen Mode: 4K UHD
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 8 ms
Brightness: 400 cd/m²
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Tempered Glass: Yes
Ambient Light Sensor: Yes
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 50
Touchscreen Technology: HyPr Touch Technology
Processor & Chipset
Processor Core: Octa-core (8 Core)
Memory
Standard Memory: 8 GB
Storage
Total Hard Drive Capacity: 64 GB
Flash Memory Capacity: 64 GB
Audio
Speakers: Yes
Number of Speakers: 2
Microphone: Yes
Number of Microphone Array Elements: 6
RMS Output Power: 40 W
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Near Field Communication: Yes
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 12
USB: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
VGA: Yes
DisplayPort: Yes
Serial: Yes
S/PDIF Out: Yes
Software
Operating System Platform: Android
Operating System: Android 13
Software Included:
- IQ embedded Android OS
- SMART Meeting Pro Room license
- SMART Meeting Pro Personal licenses
- SMART Product Drivers and SMART Ink
- SMART Remote Management
Power Description
Input Voltage: 120 V AC230 V ACPower Consumption: 149 W
Physical Characteristics
Color Family: White
Product Color: White
VESA Mount Compatible: Yes
VESA Mount Standard: 800 x 400
Mount Surface: Wall
Height: 47.20" (1199 mm)
Width: 78.03" (1982 mm)
Depth: 3.50" (89 mm)
Weight (Approximate): 149.91 lb (68000 g)
Miscellaneous
Package Contents:
- MX086-V5 Pro Interactive Display With IQ
- 1 x Power Cable
- 1 x 16.5" (5 m) USB 2.0 A to B Cable
- 1 X 6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A
- 2 x Pens
- 2 x External Tri-Band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) Antennas
- 1 Remote Control
- 2 AAA Batteries
- 1 x Illustrated Installation Instructions
- 1 x Important Information Document
Energy Star: Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 3 Year
