Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU31116
Brand Name: CyberPower
Product Model: PDU31116
Product Name: PDU31116 Single Phase 100 - 120 VAC 15A Monitored
Marketing Information:

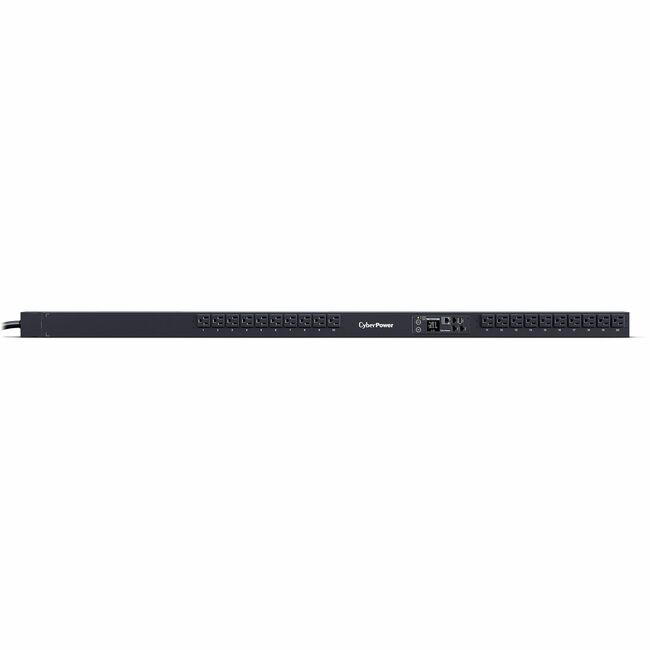

The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Product Condition: New
Product Type: PDU
Technical Information
PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 20 x NEMA 5-15R
Features: LCD Display
Power Description
Output Voltage Range: 100 V AC - 120 V AC
Input Current: 15 A
Input Frequency: 60 Hz
Management
Management:
- SNMP
- TCP/IP
- UDP
- DHCP
- HTTP
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Mount Type: Rack-mountableWall-mountableForm Factor: Horizontal/Vertical
Rack Height: 0U
Cord Length: 10 ft (3.05 m)
Height: 53.10" (1348.70 mm)
Width: 1.90" (48.30 mm)
Depth: 2.20" (55.90 mm)
Weight (Approximate): 11.51 lb (5220 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: 5°F (-15°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity: 0%
Maximum Operating Humidity: 95%
Miscellaneous
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
0 items
):
$635.95
