Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02507-001
Brand Name: AXIS
Product Model: Q1808-LE

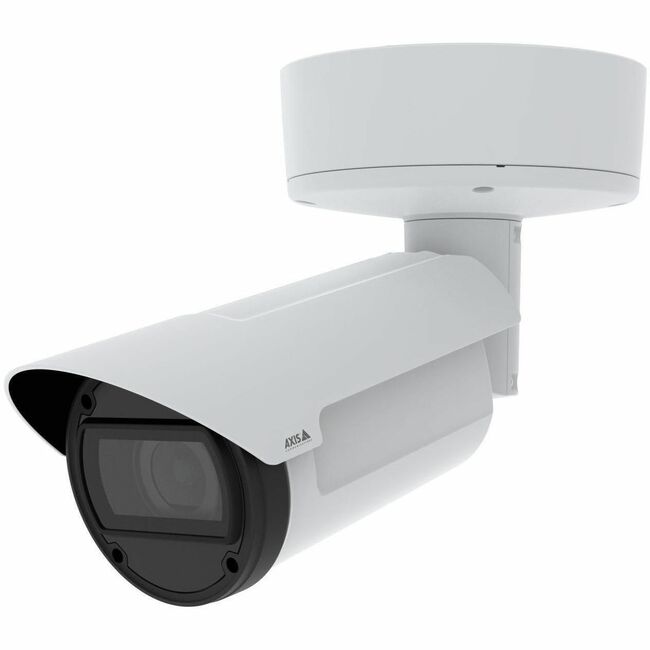

Product Name: Q1808-LE Bullet Camera
Marketing Information:
This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It's available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.
Excellent forensic details and powerful performance
Featuring a 4/3"image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, adeep learning processing unit (DLPU)lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Great coverage in wide, open areas
With a wide (12 - 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.
Excellent details at great distances
With a tele (50 - 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it's ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 120 m (394 ft) without the need for extra lighting.
Enjoy big savings
Not only does this powerful camera deliver outstanding 4K details, but thanks toZipstreamH.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you'll enjoy the optimal level of Zipstream for your video storage - regardless of yourVMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode together with low power profile reduces power demands by as much as 50% in certain temperature ranges.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 393.70 ft (120 m)
Night Vision Type: Infrared
Camera Iris: AutoP-irisWide Dynamic Range Detail: 120 dB
Infrared (IR) Cut-off Filter: Yes
Languages Support: Simplified ChineseEnglishGermanFrenchSpanishItalianRussianJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 4/3"
Color Supported: Color
Field of View: Horizontal field of view: 21°-7° Vertical field of view: 12°-4°
Effective Camera Resolution: 10 Megapixel
Video
Video Formats: H.264M (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)Motion JPEGH.264B (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileH.264H.265ZipstreamH.264MH.264BH.264HMaximum Video Resolution: 3712 x 2784
Maximum Frame Rate: 60 fps
Exposure
Shortest Shutter Speed: 1/45500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZ
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Gigabit Ethernet
Protocols: ONVIFIPv4MQTTIPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSTLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPSIPCDPMQTT v3.1.1ZeroConfIEEE 802.1ARIEEE 802.1X (EAP-TLS)Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 51 W
Input Voltage: 10 V DC28 V DC20 V AC24 V ACPower Source Type: PoEACDCPhysical Characteristics
Form Factor: Bullet
Durability: Impact Resistant
Weight (Approximate): 7.05 lb (3200 g)
Environmental Conditions
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 140°F (60°C)
Maximum Operating Humidity: 100%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:
Wide Dynamic RangeDay/NightVideo Management SystemMotion DetectionMulti-view StreamAudio CompressionHTTPS EncryptionPrivacy MaskingWhite BalancePTZIndoor/Outdoor: Outdoor
Package Contents:
- Q1808-LE Bullet Camera
- Installation Guide
- Terminal Block connector
- RJ45 Cable
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
Impact Protection Rating:
IK10IK08Ingress Protection Rating:
IP66IP67TAA Compliant: Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS) Warranty
Limited Warranty: 5 Year
