Description:
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: SFP25GLRSMST
Brand Name: StarTech.com

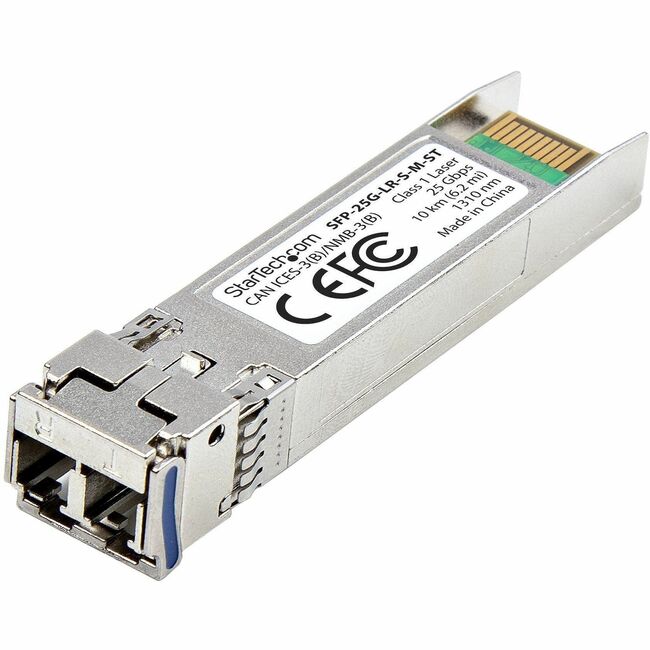

Product Name: SFP28 Module
Marketing Information:
MSA-compliant fiber optic transceiver with 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with MSA-compatible switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
- 25GBASE-LR SFP28
- Data Rate: 25Gbps
- Fiber Type: Single Mode Fiber (SMF)
- Connector: LC
- Wavelength: 1310nmTx/Rx
- Distances: Up to 10km (6.2mi)
- Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment from manufacturers that accept uncoded optical modules.
Optimized Network Reach
The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.
Product Type: SFP28
Packaged Quantity: 1
Technical Information
Application/Usage: Data NetworkingOptical NetworkInterfaces/Ports
Total Number of Ports: 2
Connector Type: LC
Interfaces/Ports Details: 2 x Full Duplex LC 25GBase-LR Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 25 Gigabit Ethernet
Network Technology: 25GBase-LR
Maximum Distance Supported: 10 km (6.21 Mile)
Maximum Data Transfer Rate: 25.78 Gbit/s
Physical Characteristics
Height: 0.30" (7.62 mm)
Width: 0.50" (12.70 mm)
Length: 2.20" (55.88 mm)
Weight (Approximate): 7.10 oz (201.28 g)
Miscellaneous
Compatibility:
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: Lifetime
