Product ID: 1079732463

Category:

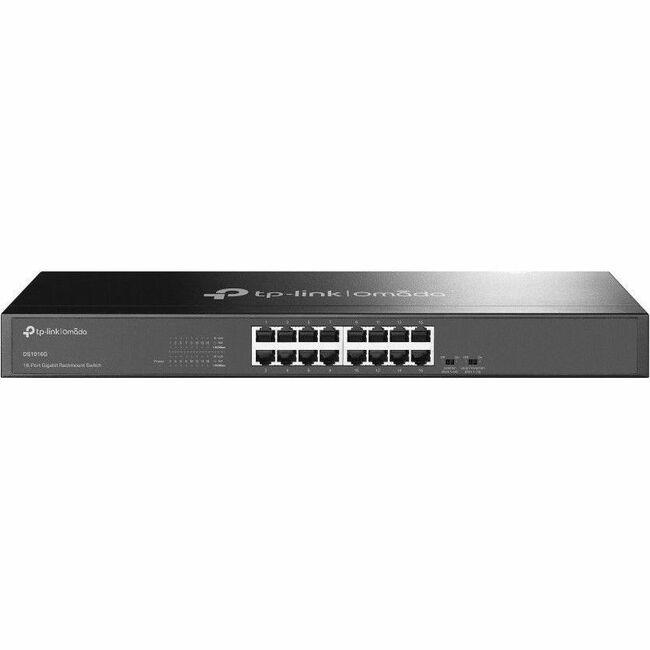

TP-Link DS1016G Omada 16-Port Gigabit Rackmount Switch


TP-Link DS1016G Omada 16-Port Gigabit Rackmount Switch

Price (CDN): $88.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $88.95

Quantity:




Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: DS1016G
Brand Name: TP-Link
Product Line: Omada
Product Model: DS1016G
Product Name: DS1016G Omada 16-Port Gigabit Rackmount Switch
Marketing Information:

What This Product Does

The DS1016G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the DS1016G can save power consumption, making it an eco-friendly solution for your business network.

TP-Link Green Technology

This new generation DS1016G Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU's RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, DS1016G forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra¡ffic congestion and make The DS1016G work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Loop Prevention

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.


Package Type: Retail
Product Type: Ethernet Switch
Technical Information
Features:
  • Fanless
  • Loop Protection
  • Interfaces/Ports
    Total Number of Network Ports: 16
    Network (RJ-45): Yes
    Media & Performance
    Media Type Supported: Twisted Pair
    Ethernet Technology: Gigabit Ethernet
    Network Technology: 10/100/1000Base-T
    Network & Communication
    Networking Standards:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Power Source: AC
    Power Consumption: 10.68 W
    Physical Characteristics
    Product Material: Steel
    Form Factor:
  • Rack-mountable
  • Desktop
  • Height: 1.73" (44 mm)
    Width: 17.32" (440 mm)
    Depth: 5.51" (140 mm)
