Description:
General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TSH1677AXURPR732GUS
Brand Name: QNAP
Product Series: TS-h1677AXU-RP
Product Model: TS-H1677AXU-RP-R7-32G-US

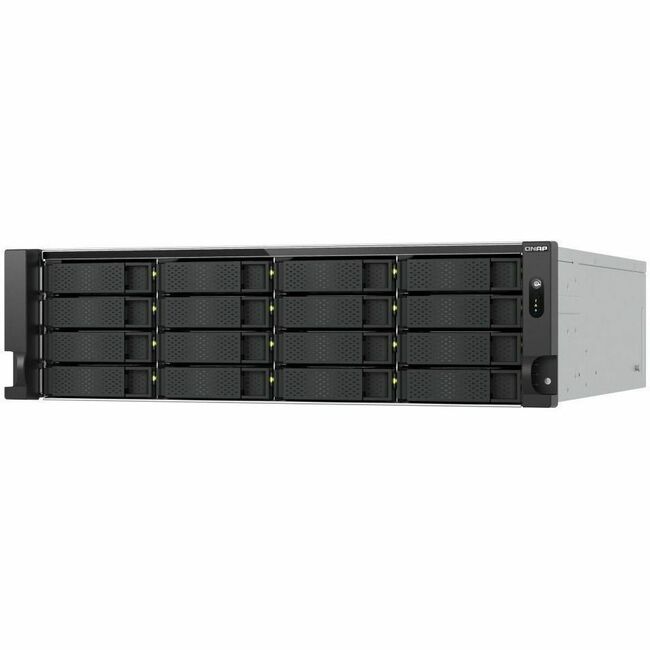

Product Name: TS-H1677AXU-RP-R7-32G-US SAN/NAS Storage System
Marketing Information:
New-gen AMD Ryzen™ 7000 Series processors unleash enterprise-level power and potential | Processor
AMD Ryzen™ 7 7000 Series 8-core and 16-thread (up to 5.3 GHz)
Memory
Comes with 32GB DDR5 non-ECC RAM as standard, supports up to 192GB (4x 48GB)
AMD AM5 Platform
Zen 4 architecture and 5nm technology with support for DDR5 and M.2 PCIe 5.0
GPU
Built-in AMD Radeon™ Graphics accelerates video processing and graphical computing
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 16
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 16
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 5 GB
Processor & Chipset
Processor Manufacturer: AMD
Processor Type: Ryzen 7
Processor Core: Octa-core (8 Core)
Memory
Standard Memory: 32 GB
Memory Technology: DDR5 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet10 Gigabit EthernetI/O Expansions
Number of Total Expansion Bays: 16
Number of 2.5"/3.5" Bays: 16
Total Number of Expansion Slots: 5
Expansion Slot Type: PCI Express 5.0 x2PCI Express 4.0 x4Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Interfaces/Ports
Drive Interface: Serial ATA/600Serial ATA/300Total Number of USB Ports: 2
Number of USB 3.2 Gen 2 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Fibre Channel: Yes
Software
Operating System: QTS 5.2.5
Operating System Supported: Mac OS X 10.10 YosemiteUbuntu 14.04CentOS 7.0Red Hat Enterprise Linux 6.6SUSE Linux Enterprise Server 12Solaris 10Windows 7Windows 10Windows 8Windows 11Windows Server 2008 R2Windows Server 2012Windows Server 2012 R2Windows Server 2016Windows Server 2019Windows Server 2022Management & Protocols
Protocols: iSCSINTFSCIFS/SMBAFPNFSv3NFSv4FTPSFTPTFTPSSL/TLSSNMPv2SNMPv3IPv4IPv6SSHTelnetHTTPSTLSPPTPL2TPIPSecPower Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 550 W
Redundant Power Supply: Yes
Physical Characteristics
Cooling Fan: Yes
Height: 5.17" (131.32 mm)
Width: 18.98" (482.09 mm)
Depth: 21.69" (550.93 mm)
Form Factor: Rack-mountable
Rack Height: 3U
Compatible Drive Bay Width: 2.5"3.5"Weight (Approximate): 34.48 lb (15639.86 g)
